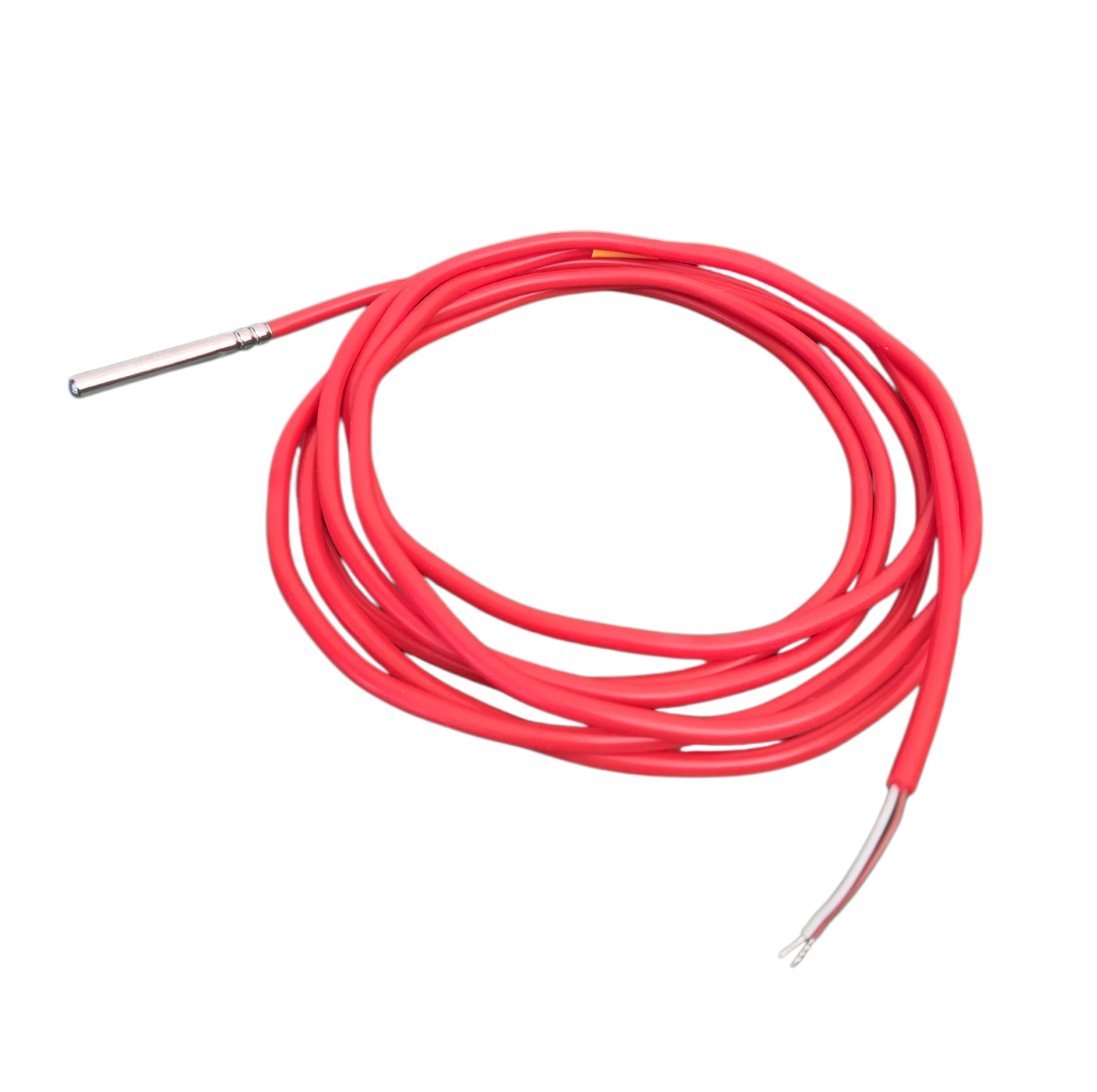

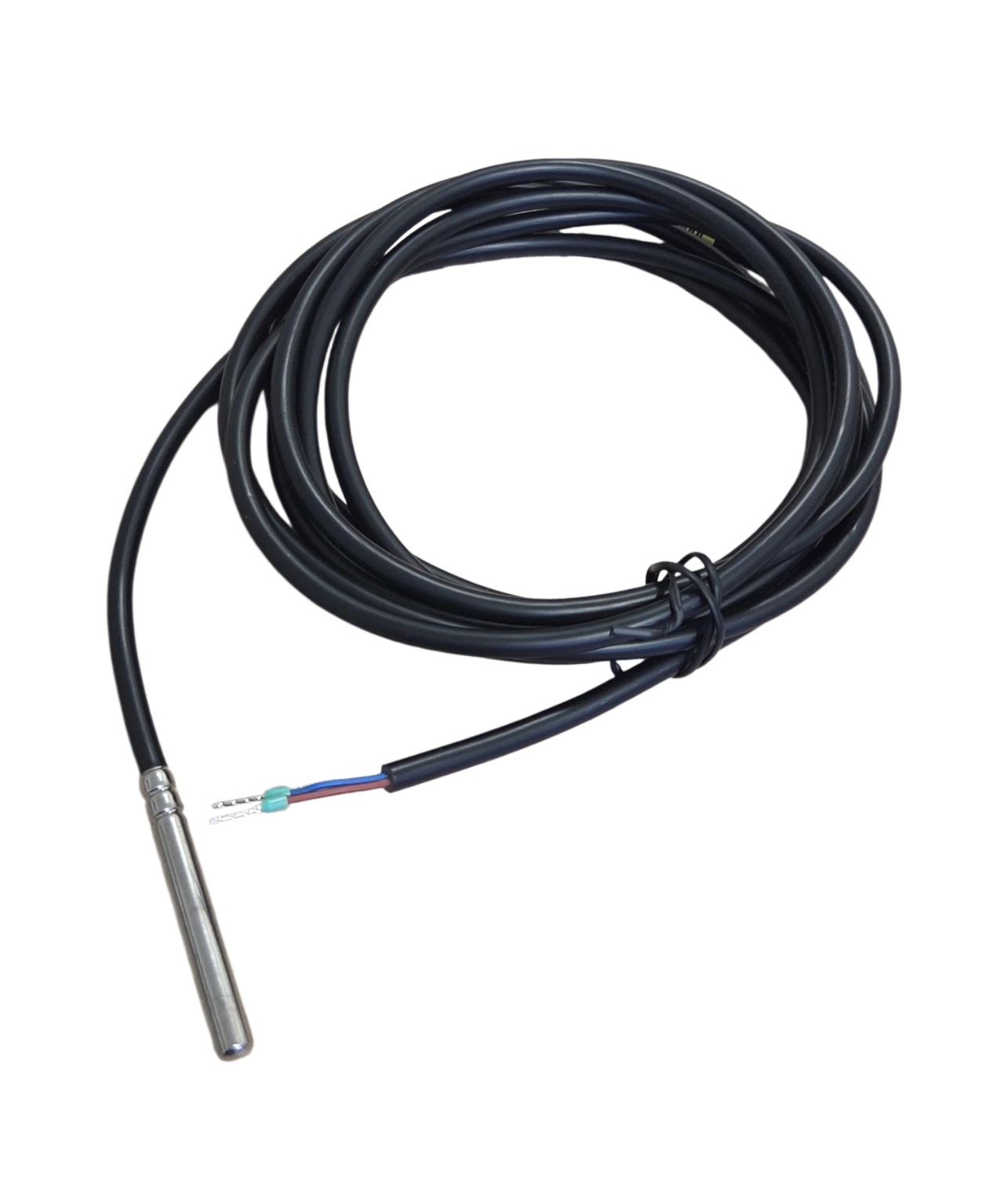

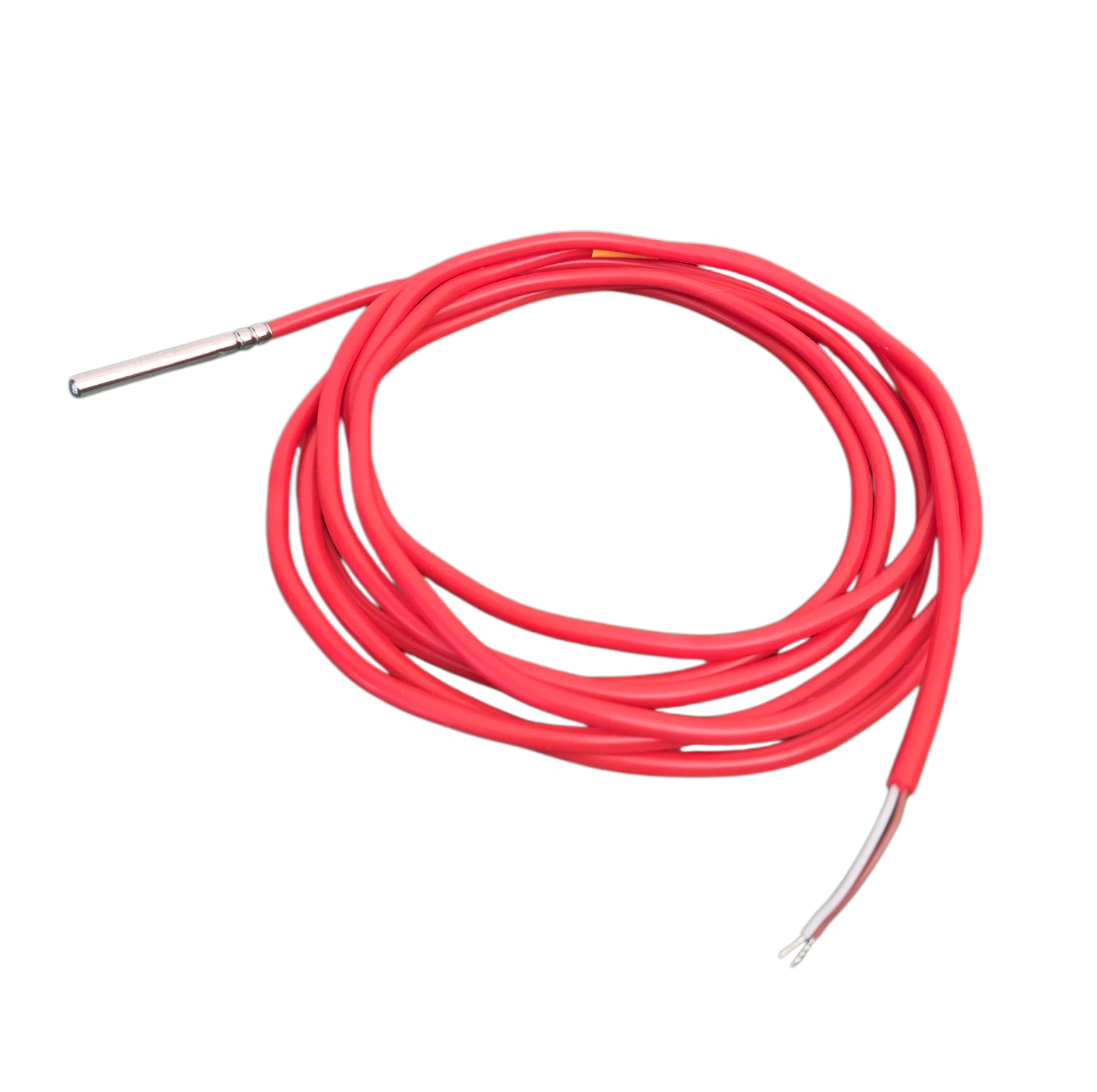

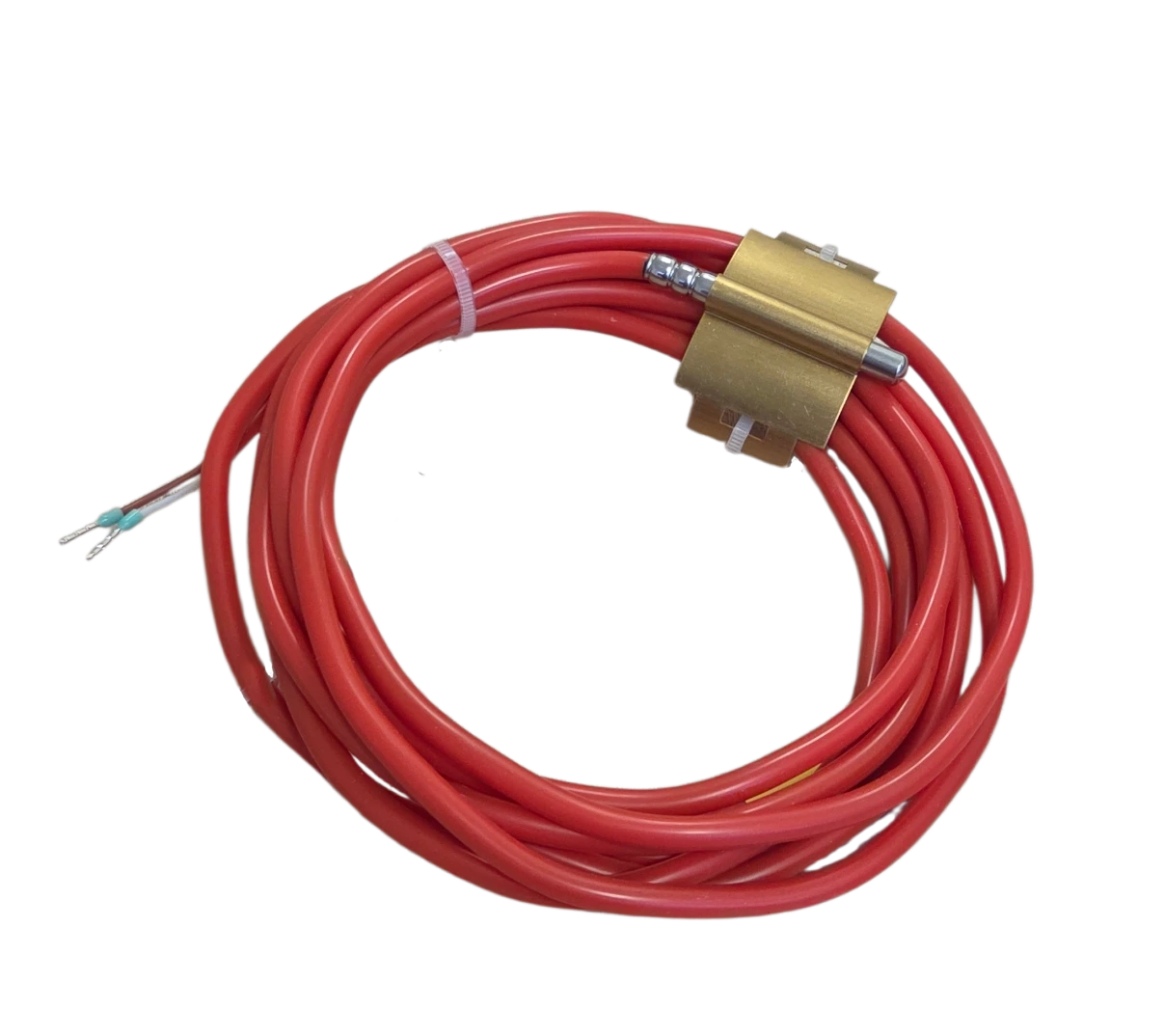

TP06 PT1000

Measured variables: Temperature
Passive output: PT1000
Temperature measurement range: -50… +180 °C (limited by connecting cable)
Temperature application range: PVC -35 … +100 °C, Silicone -50 … +180 °C
Temperature accuracy: according to DIN
Sensor: 2-wire, sensor cable 3 m
Protection class: IP67 according to DIN EN 60529, rolled

Sleeve:
Stainless steel V4A, Material 1.4571, Ø=6 mm, installation length 50 mm
Notes:
Cable ends standard with wire end sleeves, further sensors and cable lengths on request
