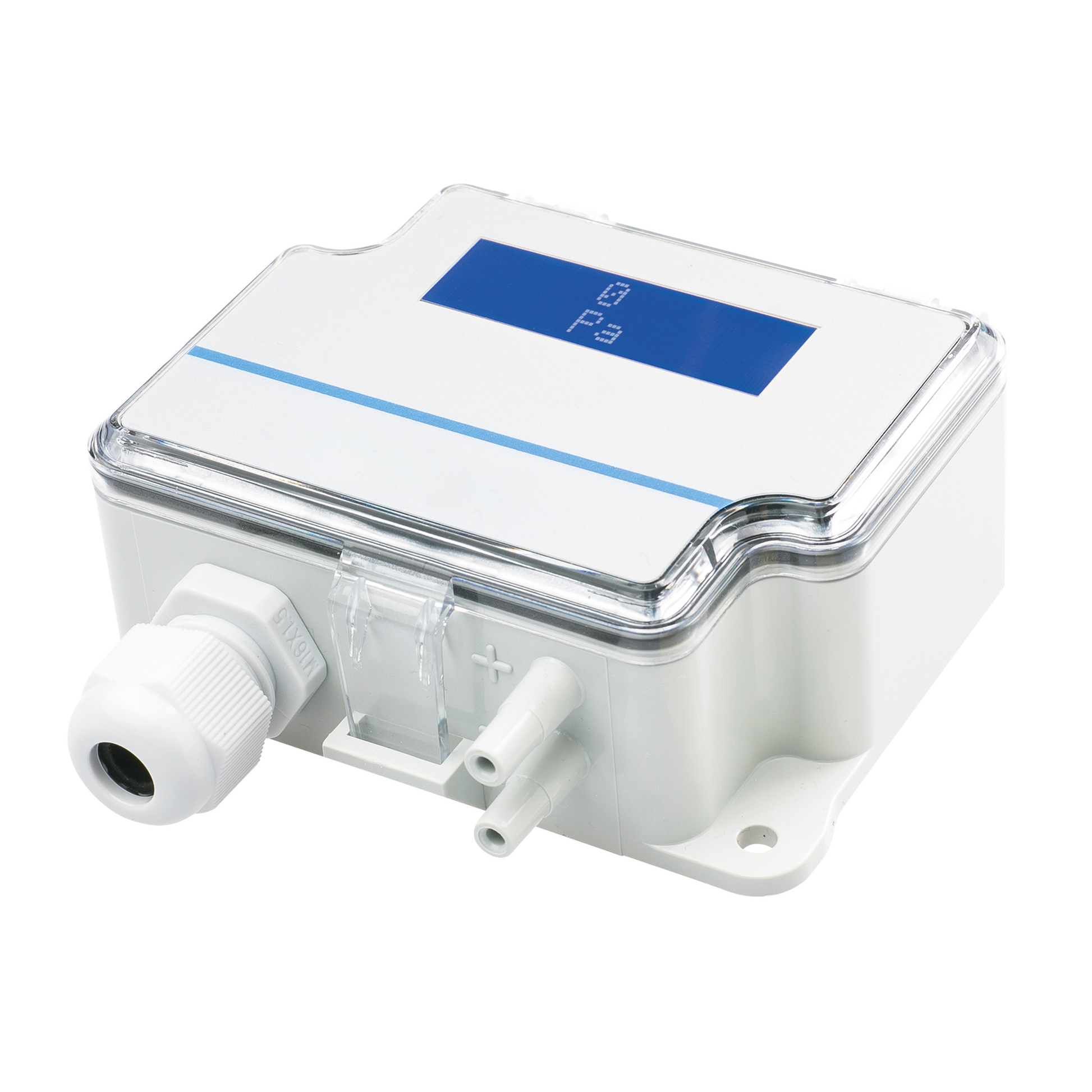

High-quality air differential pressure sensor for building automation.
The measuring ranges, units, and outputs can be easily configured in the field via jumper.
Measuring range 0 1000 pa - Supported
Measuring range 0 1500 pa - Supported
Measuring range 0 2000 pa - Supported
Measuring range 0 2500 pa - Supported
Measuring range 0 3000 pa - Supported
Measuring range 0 4000 pa - Supported
Measuring range 0 5000 pa - Supported
Measuring range 0 7000 pa - Supported
Interface 010v - 1 X
Interface 210v - 1 X
Interface 420ma - 1 X
Differential pressure - Supported
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Betriebstemperatur
-20…50°C
Mase
9 × 9 × 3 cm
Messgenauigkeit
below 125 Pa = 1.5% ±2 Pa above 125 Pa = 1.5% ±1 Pa
Spannungsversorgung
24V AC/DC
