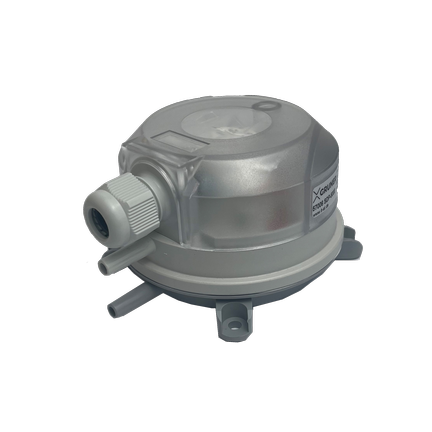

Pressure switch for non-aggressive gases, mechanical
The pressure switch detects overpressure, underpressure or differential pressure via the two inputs using a silicone diaphragm and switches a changeover contact when the
defined switching pressure is reached.
Bursting pressure: > 100 mbar
Repeatability : ± 1 %, 2.5 %, 5 % min. ±5 Pa
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Betriebstemperatur
'-30…+80°C
Elektrischer anschluss
5 A/ 250 V AC, max. 1
Messbereich
20…200 Pa, 30…400 Pa, 50…500 Pa, 200…1000 Pa, 500…2500 Pa, 1000…5000 Pa
Schutzart
IP54
