RDC712

RDC712

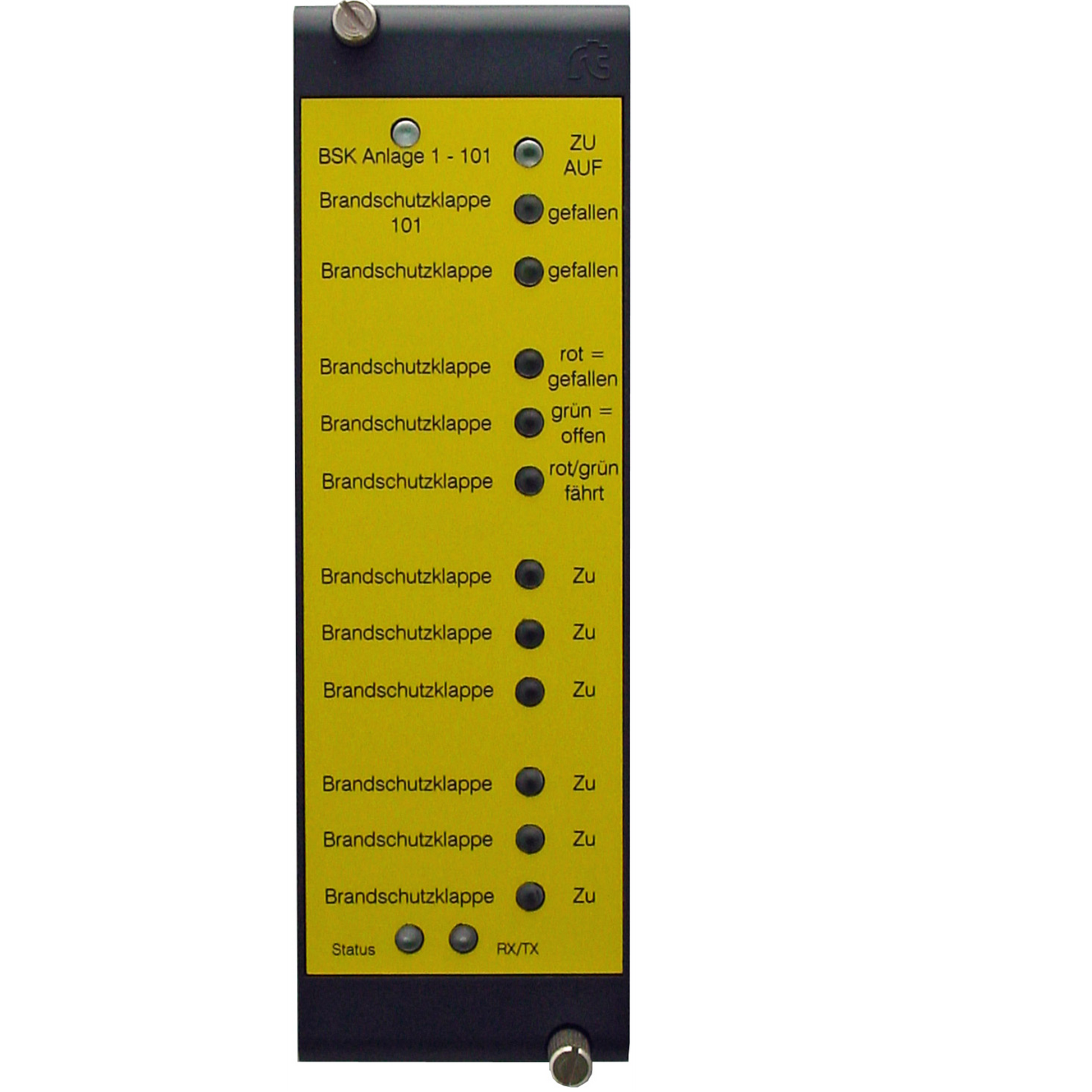

Display module with 12 3-color/flashing LEDs without application
Device Profile: BACNET SMART ACTUATOR (B-SA)

Signaling module with the following configuration:
- 12 virtual inputs as data points with status display by
LEDs red/green/yellow, adjustable in 19" front format
- Parameterization and subscription of data points via BACnet objects
- Communication status display
- 24V AC/DC power supply
- Interface as pluggable connection for RS485 bus via terminal adapter
- Operating temperature: 0 to +50°C
- Relative humidity: 10-70 %RH
- Protection class: IP 20
- CE compliant and RoHS compliant
- Dimensions 3 HU, 8 HP, 129x40mm
- Labeling freely selectable, engraved Resopal
- Connection via terminal adapter (voltage and bus)
