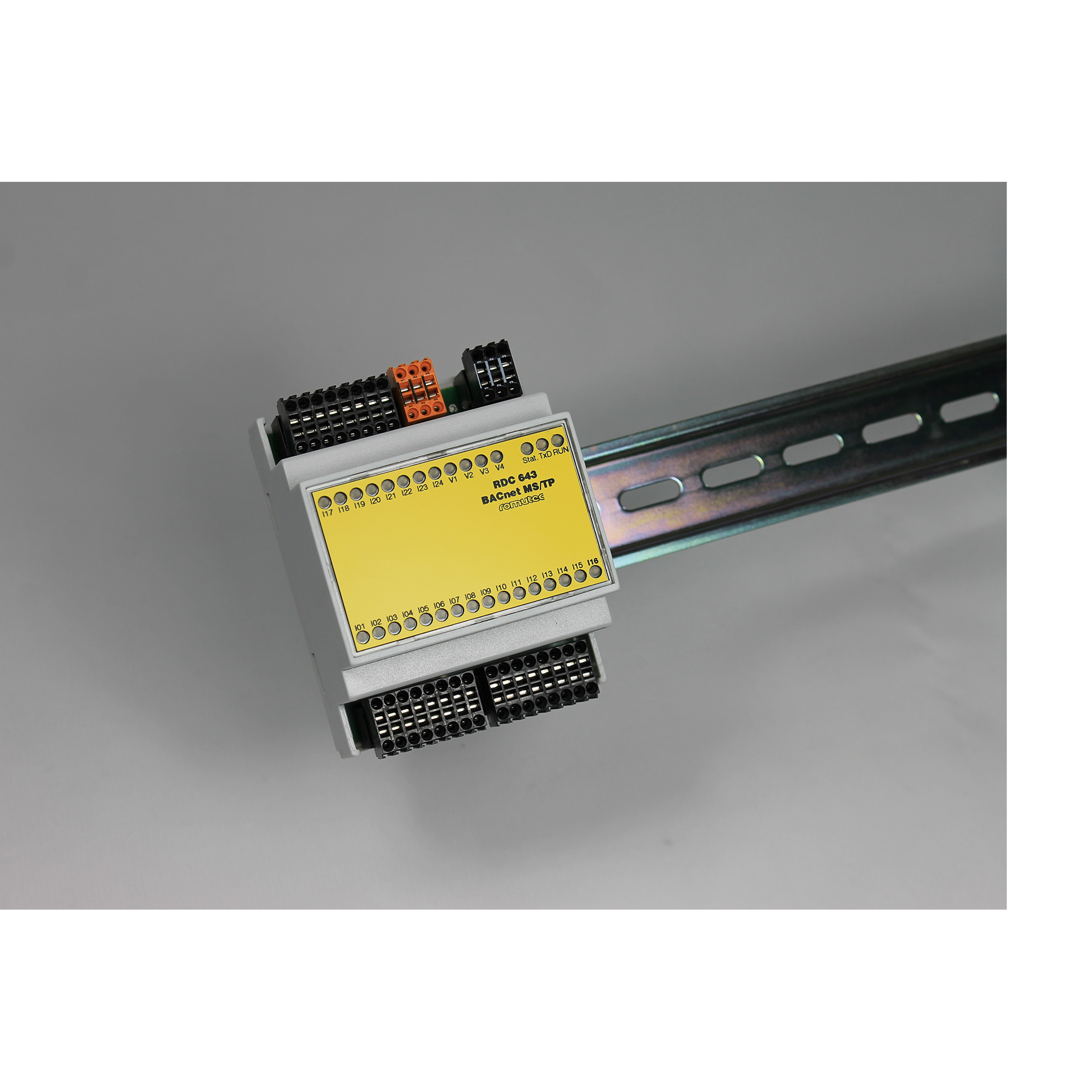

RDC643

RDC643
BACnet MS/TP fieldbus module 24xDI, with status display
Remote I/O module with BACnet MS/TP interface (master or slave)
Device Profile: BACNET SMART ACTUATOR (B-SA)

Physical data points:
- 24 digital inputs

- Inputs with status LED adjustable in red/green/yellow
- 24V AC/DC, 4 VA power supply
- Interface as 6-pin pluggable
RS485 connection for MS/TP bus
- all terminals spring-cage terminal, pluggable
- Plastic housing for DIN rail mounting DIN EN50022
- Dimensions 72x92x65mm (wxhxd)
- Operating temperature: 0 to +50°C
- Relative humidity: 10-70% RH
- Protection class: IP 20
- CE-compliant
