RAG1515

RAG1515

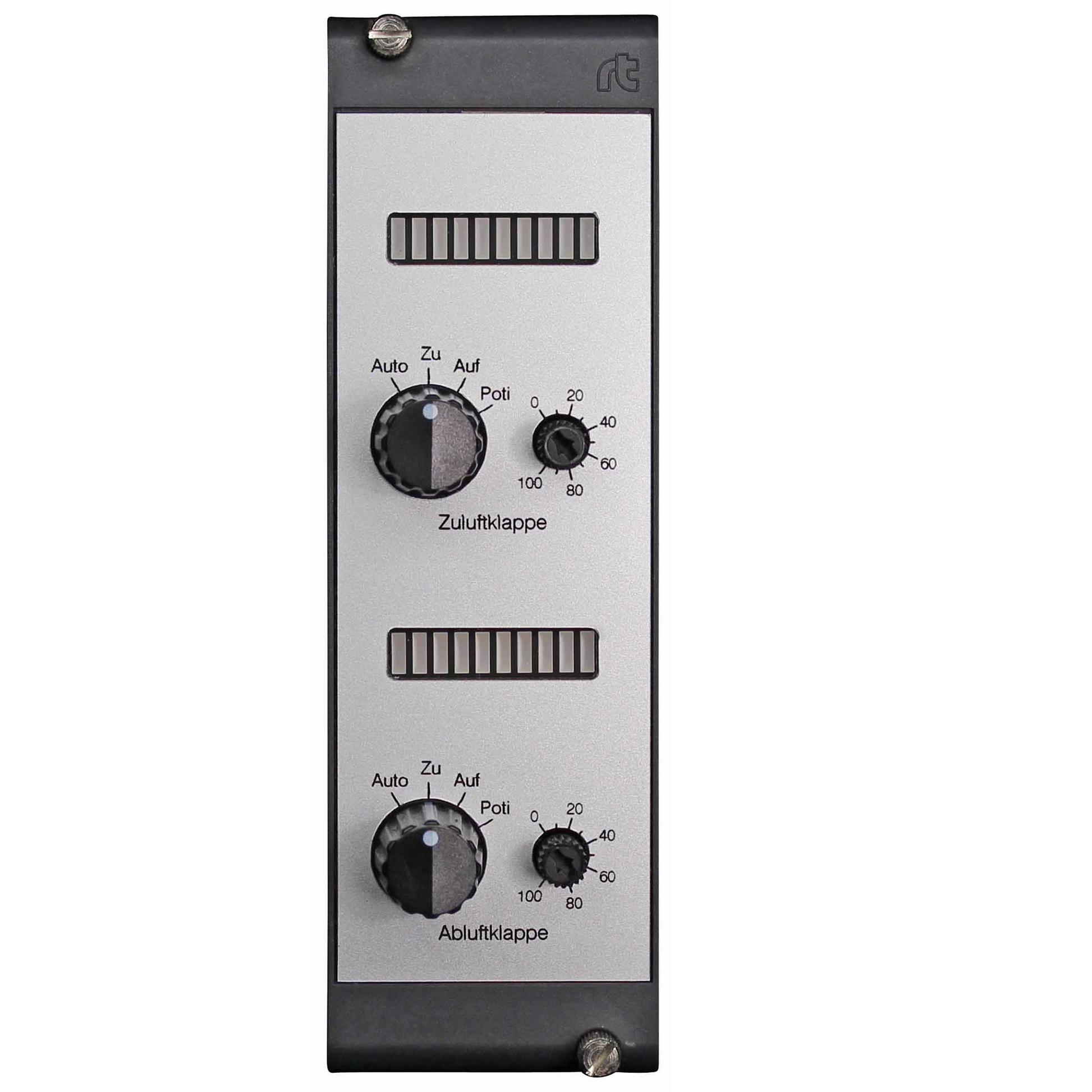

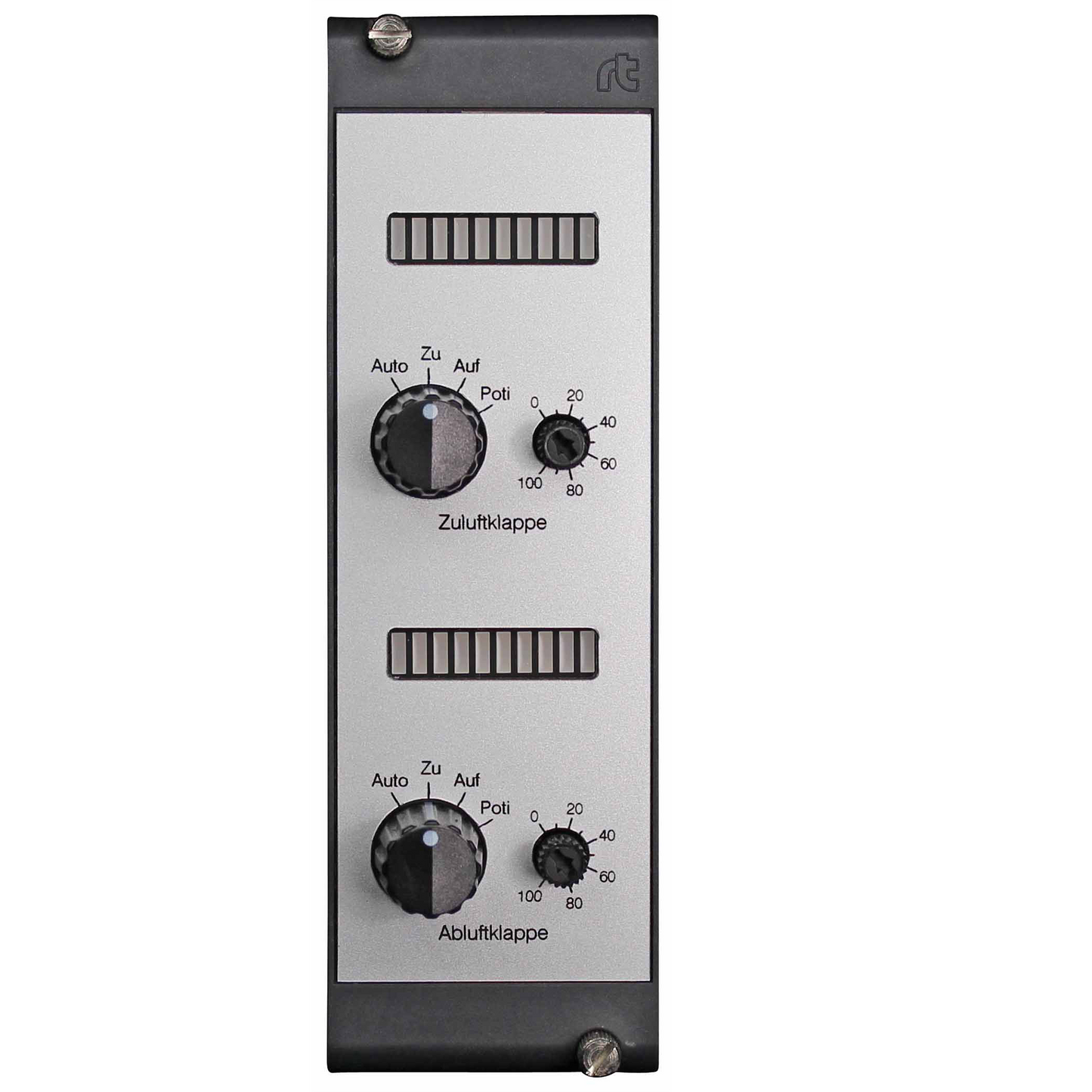

Analog module 2x 0-10 V, control switch, potentiometer, bar graph display
Manual/priority control level for analog outputs in 19" module technology
Analog transmitter module for overriding two analog signals of a controller or DDC system via manual intervention.
Rotary switch Auto-Closed-Open-Potentiometer with switch position feedback Auto. In the potentiometer switch position, the output can be continuously adjusted between 0-10 volts using the built-in potentiometer.
Trend display via bar graph
Mounting in 19" mounting frame.
Power supply: 24V AC/DC
Outputs: 0-10V, max. 10mA each
Labeling freely selectable.
