FBM-4DI.24

FBM-4DI.24
4 digital inputs 24V AC/DC with counter function, supply 24VAC/DC /housing IP66 160x140x81mm, Modbus interface

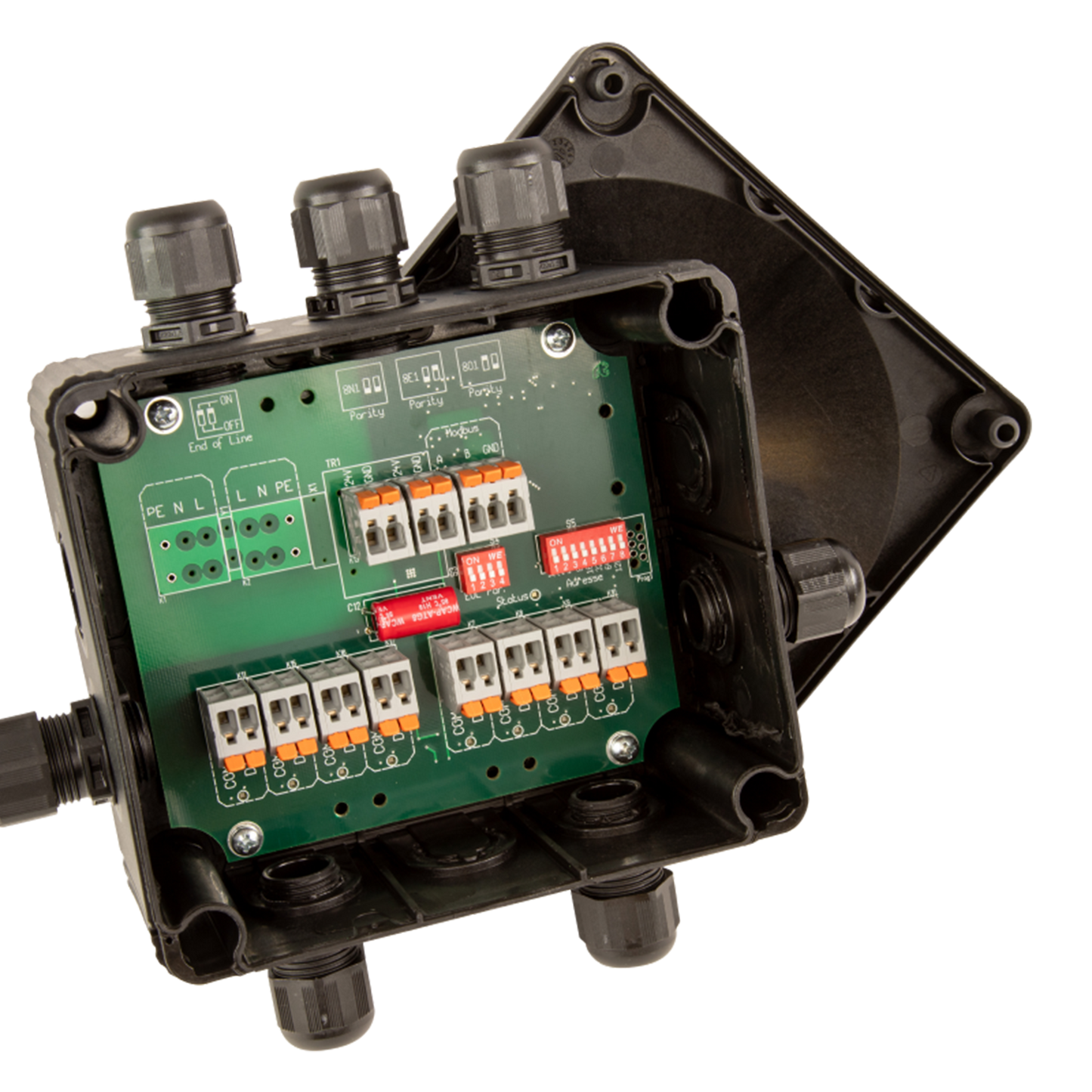

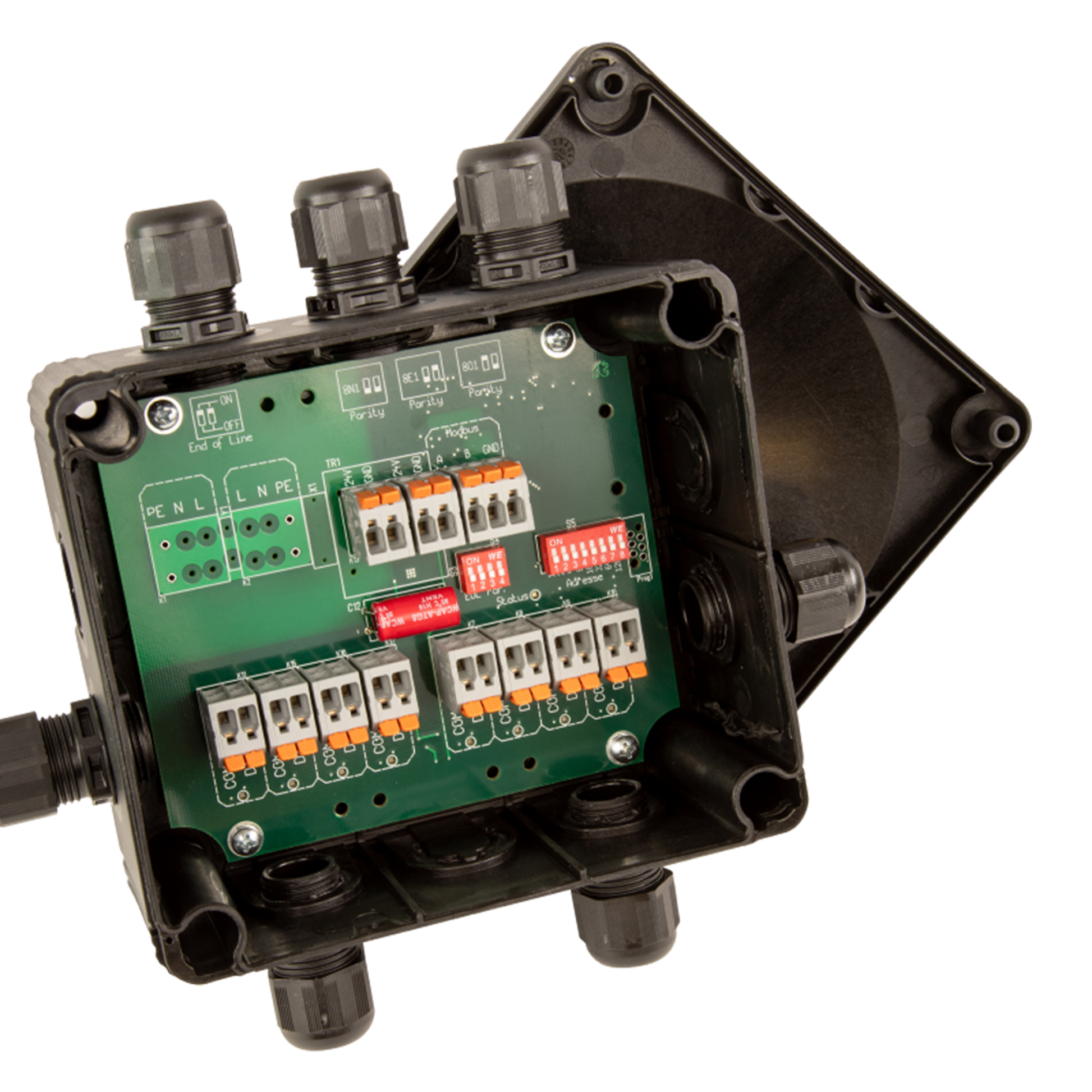

Fieldbus module with Modbus RTU interface for connecting up to 4 messages or limit switches.

-Plastic housing with IP67 protection for ceiling or wall mounting
-Strain relief via cable gland
-Modbus RTU interface with automatic baud rate detection
-Power supply 24VAC/DC
-Galvanically isolated bus connection
-Status LEDs of the inputs directly on the module

Physical data points:
4x digital inputs
