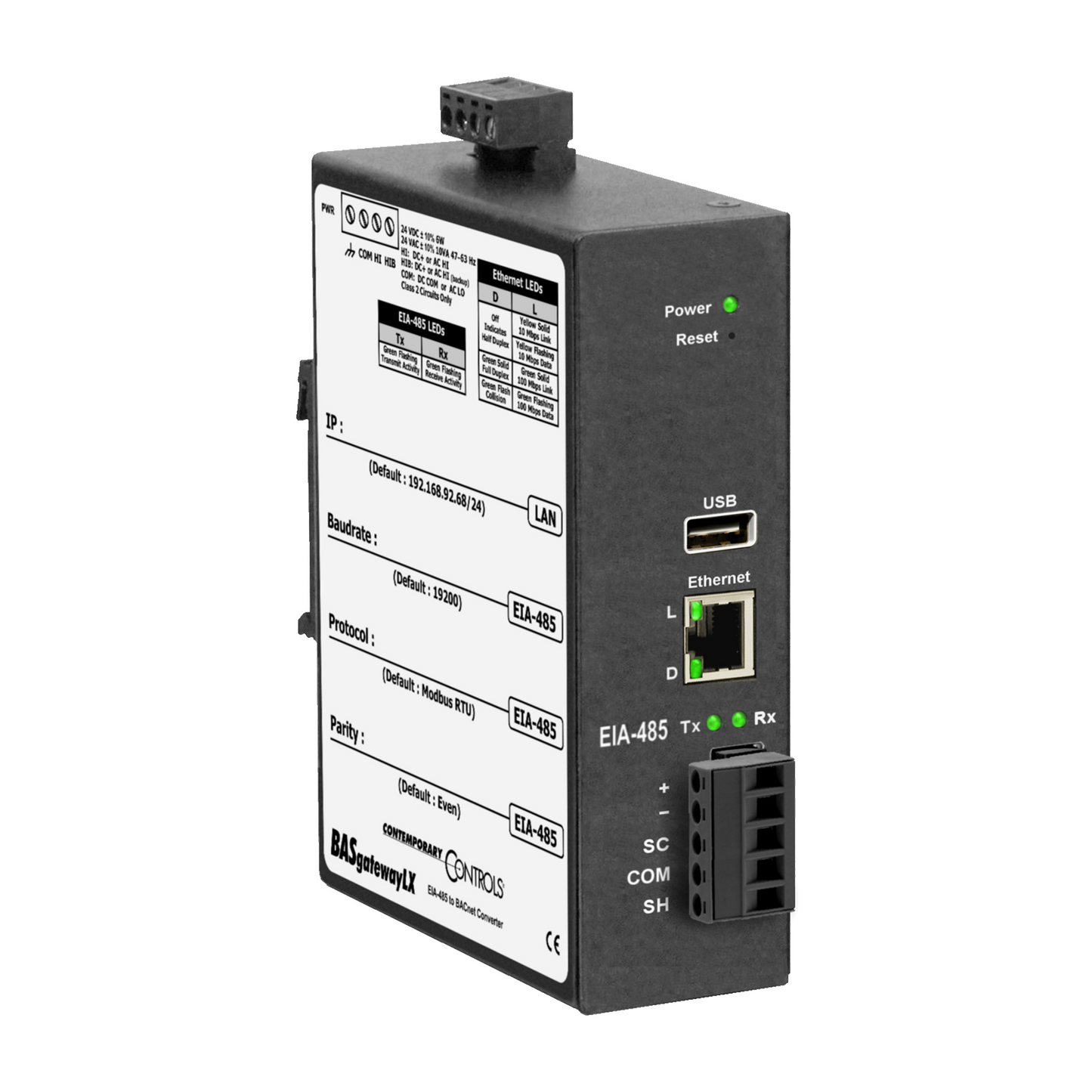

BASGLX-M1

BASGLX-M1
BACnet Gateway
Modbus (RTU or ASCII) - BACnet / IP
Modbus TCP - BACnet / IP
Routing functionality between
- Serial Modbus (RTU and ASCII) and Modbus TCP
Flexible communication ports
10/100 Mbps Ethernet with auto-negotiation and auto-MDIX
Opto-isolated serial interface supports either 2-wire or 3-wire EIA-485
Jumper selectable EIA-485 Bias and termination
Baud rates from 2.4 to 115.2 kbps
USB port for backing up configuration files
Power supply: 24V AC/DC +/-10%
Power supply: redundant connection possible
Operating temperature: 0-60°C
DIN rail mounting
Robust metal housing
Removable terminals
