IT-AT
Regular price
€653,00 EUR
Regular price
Sale price
€653,00 EUR
Quantity
Couldn't load pickup availability

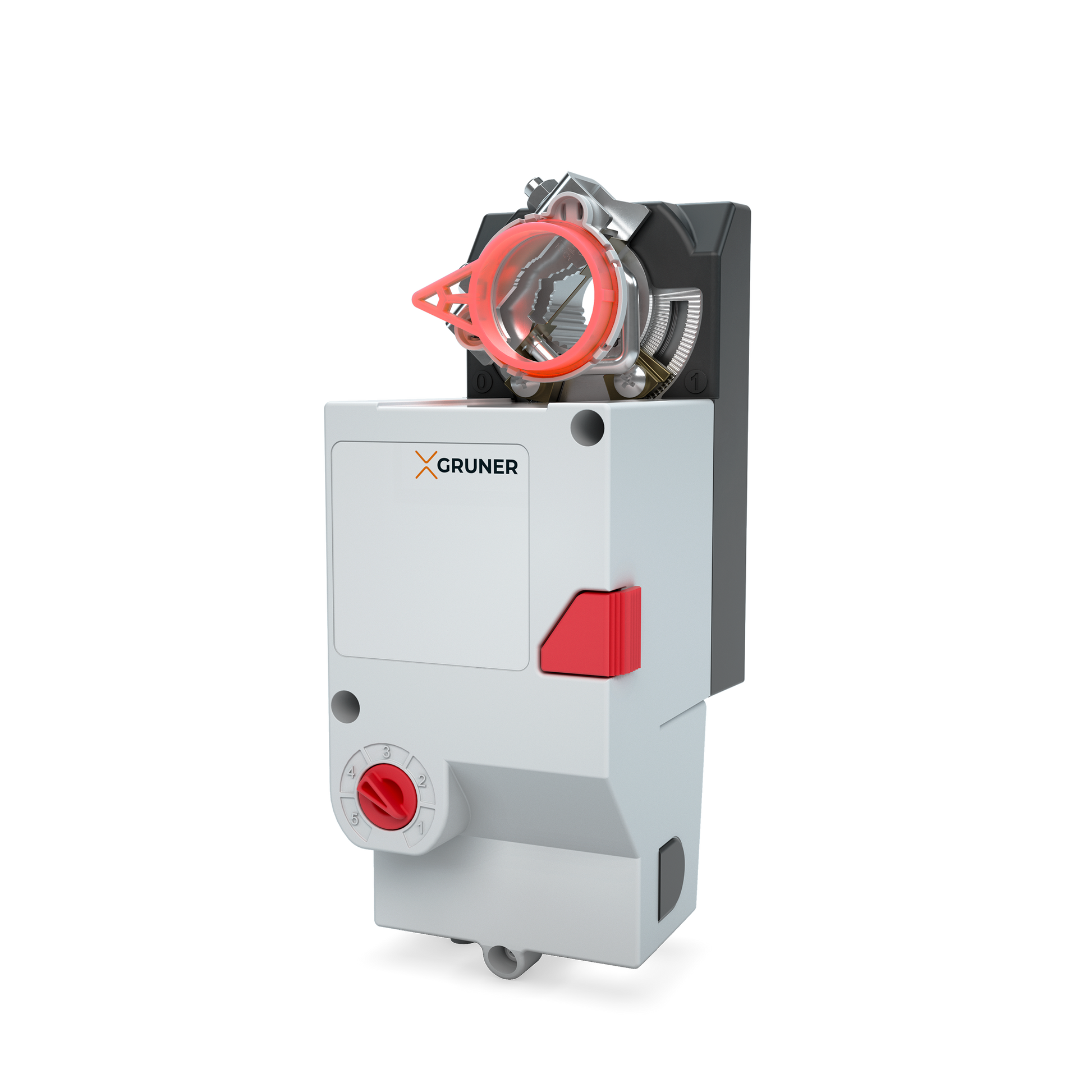

328QS-024T-05B-MB
Rotary actuator without spring return
24 VAC/DC, continuous (0)2…10 V
Torque 5 Nm
Running time 2 s/90°
Connection with 1m cable
Feedback signal: (0)2…10 V
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with mounting bracket + screws
Spring running time - without spring return
Position limit switch - without switch
Direction of rotation - selectable by switch
Manual operation - push button
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Ansteuerung
(0)2…10 V
Drehmoment
5 Nm
Elektrischer anschluss
1m cable
Fur klappengrosse
approx. 1 m²
Gewicht
1 kg
Laufzeit motor
2s/90°
Ruckmeldung
(0)2…10 V
Schutzart
IP54
Spannungsversorgung
24V AC/DC
Wellenmitnahme
? 8…15 mm, ? 8…20 mm
