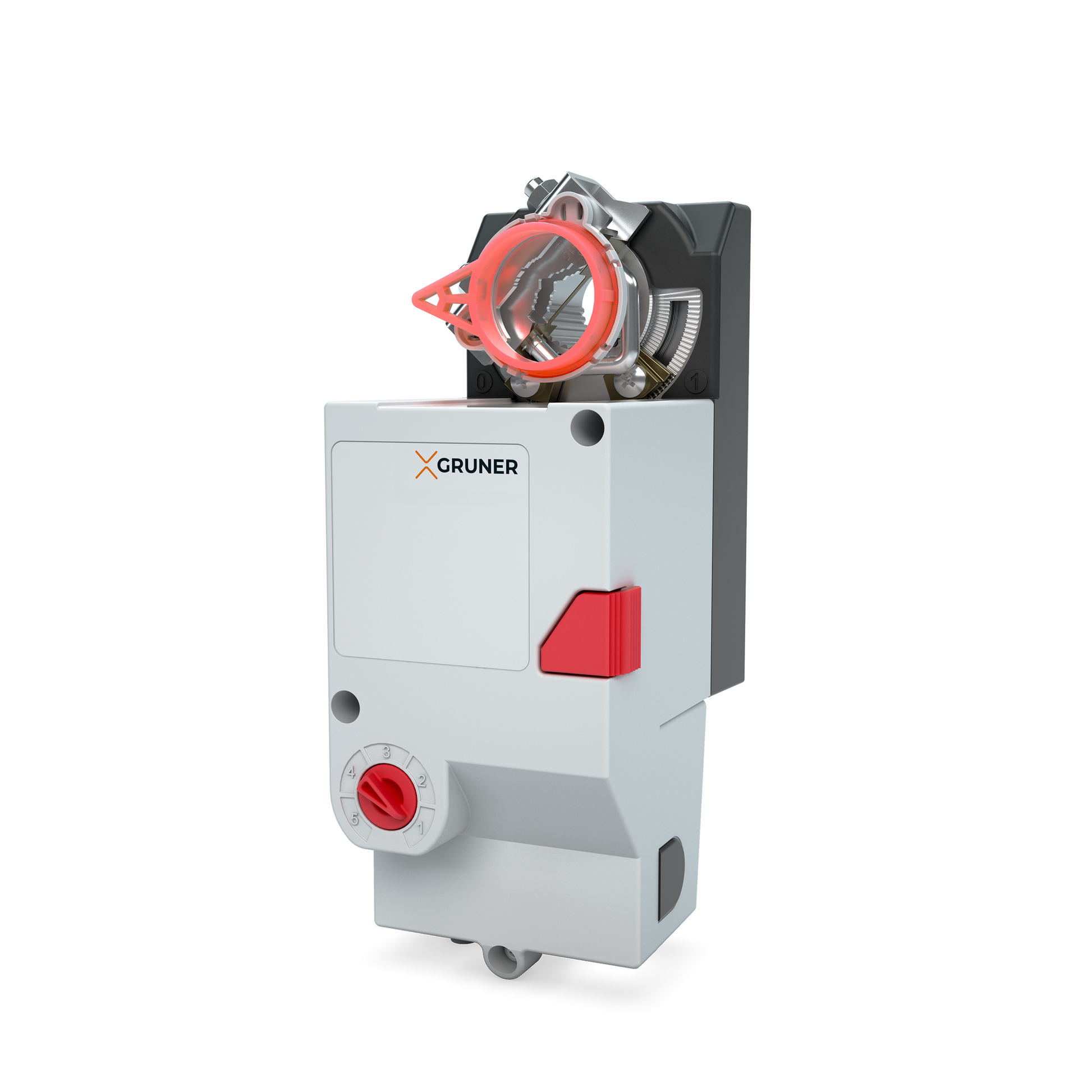

328QS-024-05B
Rotary actuator without spring return
24 VAC/DC, modulating (0)2…10 V
Torque 5 Nm
Running time 2 s/90°
Connection with 1m cable
Feedback signal: (0)2…10 V
Shaft coupling: O 8-20 mm, square 8-15 mm
Mounting with mounting bracket + screws
Running time spring - without spring return
Position switch contact - without switch
Direction of rotation - selectable by switch
Manual operation - push-button
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Ansteuerung
(0)2…10 V
Drehmoment
5 Nm
Elektrischer anschluss
1m cable
Fur klappengrosse
approx. 1 m²
Gewicht
1 kg
Laufzeit motor
2s/90°
Ruckmeldung
(0)2…10 V
Schutzart
IP54
Spannungsversorgung
24V AC/DC
Wellenmitnahme
? 8–15 mm, ? 8–20 mm
