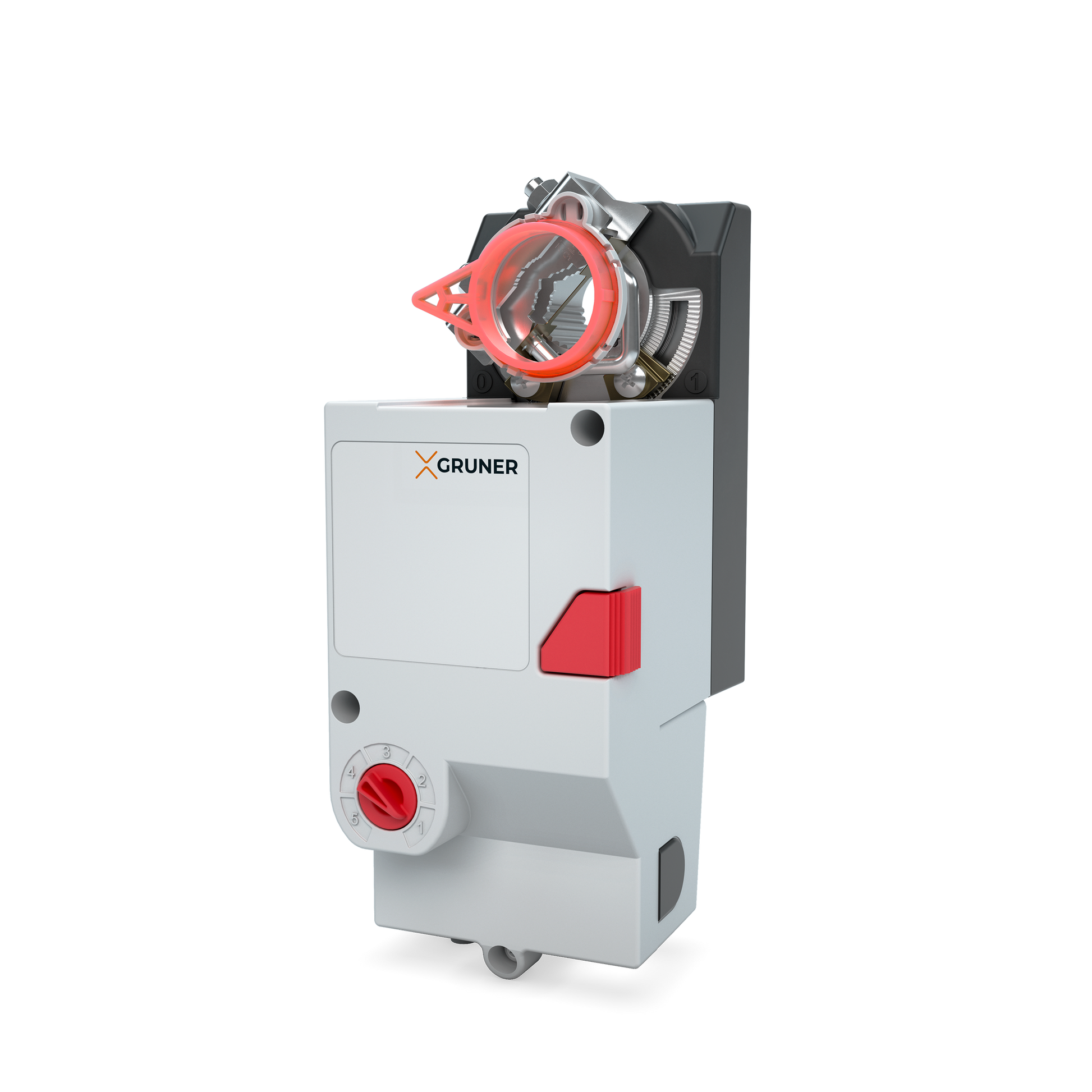

328CS-024T-02A-MB
Rotary actuator without spring return
24 VAC/DC, continuous (0)2…10 V
Torque 2 Nm
Running time 20 s/90°
Connection with 1m cable
Feedback signal: (0)2…10 V
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with mounting bracket + screws
Running time spring - without spring return
Position switching contact - without switch
Direction of rotation - selectable by switch
Manual override - Push button
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Ansteuerung
(0)2…10 V
Drehmoment
2 Nm
Elektrischer anschluss
1m cable
Fur klappengrosse
4 m², approx. 0
Laufzeit motor
1s/90°
Ruckmeldung
(0)2…10 V
Schutzart
IP54
Spannungsversorgung
24V AC/DC
Wellenmitnahme
? 8–15 mm, ? 8–20 mm
