IT-AT
Regular price
€207,00 EUR
Regular price
Sale price
€207,00 EUR
Quantity
Couldn't load pickup availability
227Z-024-15/RE20

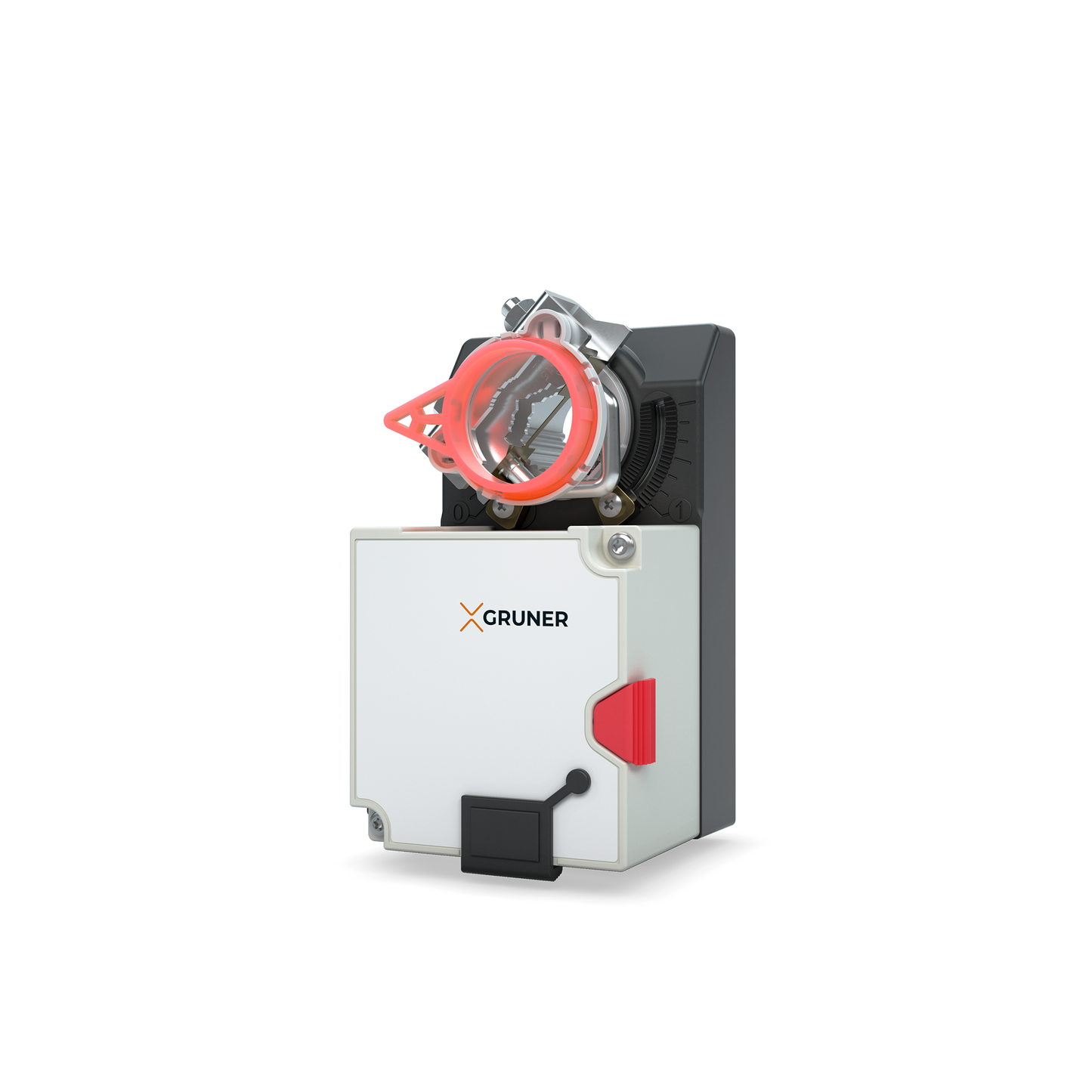

Rotary actuator without spring return
24 VAC/DC, 2/3 point
Torque 15 Nm
Running time 150 s/90°
Connection with 1m cable
Feedback signal: -
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with Z-flange + screws
Spring running time - without spring return
Position switch contact - without switch
Feedback - without feedback
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Ansteuerung
2/3 point
Drehmoment
15 Nm
Elektrischer anschluss
1m cable
Fur klappengrosse
approx. 3m²
Laufzeit motor
150s/90°
Schutzart
IP54
Spannungsversorgung
24V AC/DC
Wellenmitnahme
? 8–15 mm, ? 8–20 mm
