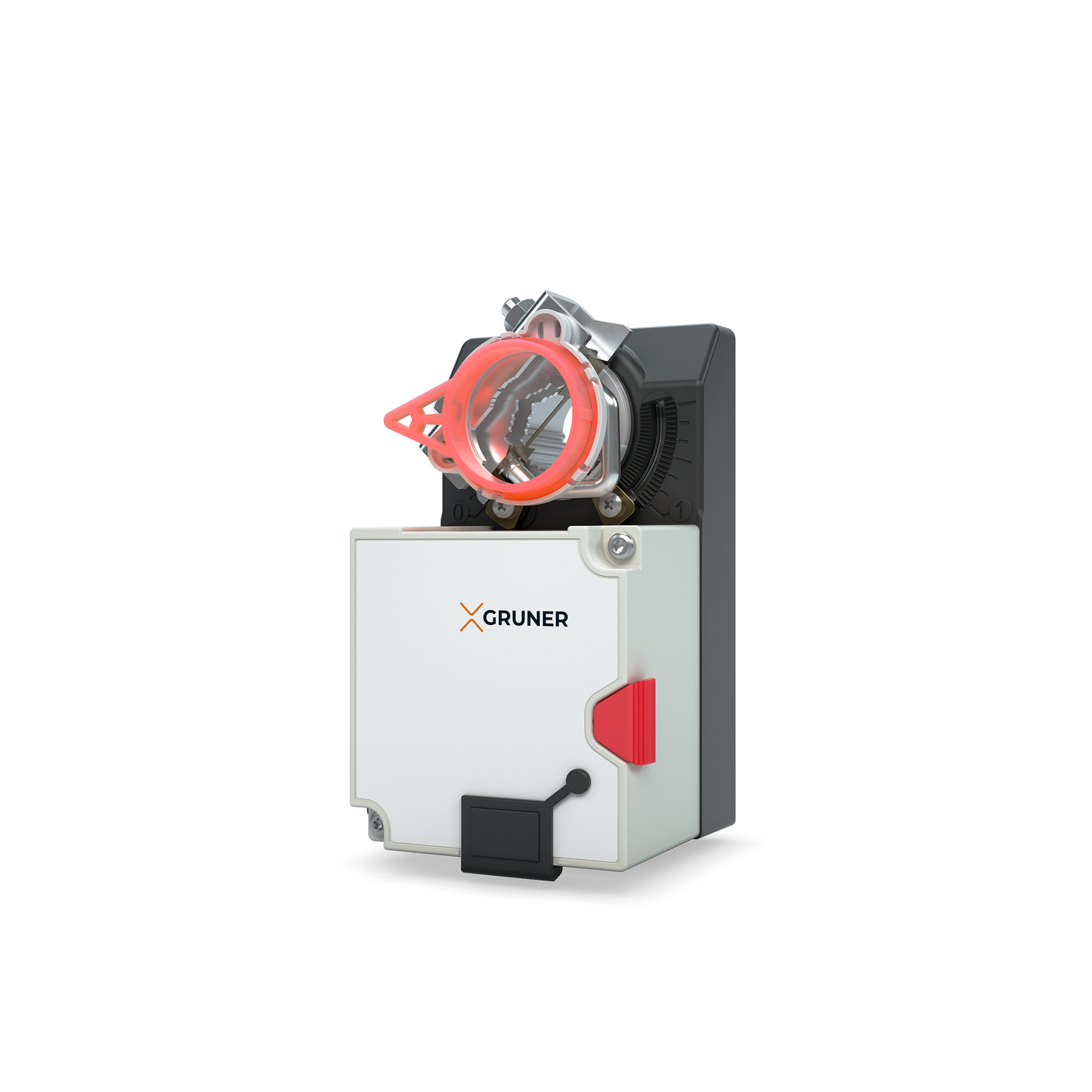

227Z-024-05/RE20
Rotary actuator without spring return
24 VAC/DC, 2/3 point
Torque 5 Nm
Running time 100 s/90°
Connection with 1m cable
Feedback signal: -
Shaft coupling: O 8-20 mm, square 8-15 mm
Mounting with Z-flange + screws
Spring running time - without spring return
Position switching contact - without switch
Feedback - without feedback
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Ansteuerung
2/3 point
Drehmoment
5 Nm
Elektrischer anschluss
1m Cable
Fur klappengrosse
approx. 1 m²
Laufzeit motor
100s/90°
Schutzart
IP54
Spannungsversorgung
24V AC/DC
Wellenmitnahme
? 8…15 mm, ? 8…20 mm
