IT-AT
Regular price
€267,00 EUR
Regular price
Sale price
€267,00 EUR
Quantity
Couldn't load pickup availability
227SZ-230-05-P5/RE20

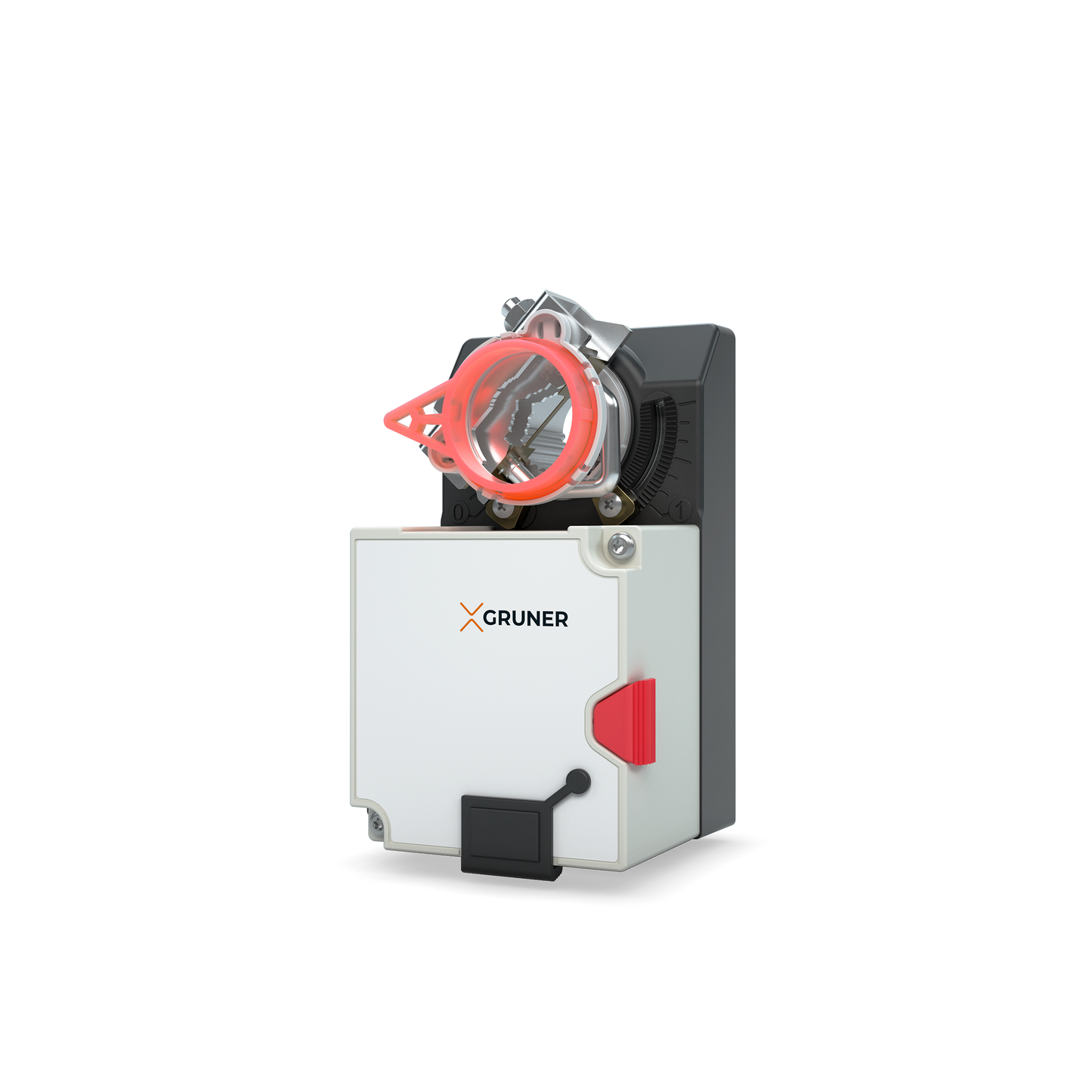

Rotary actuator without spring return
120...230 VAC/DC, 2/3 point
Torque 5 Nm
Run time 20 s/90°
Connection with 1m cable
Feedback signal: Potentiometer
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with Z-flange + screws
Spring run time - without spring return
Position switch contact - without switch
Feedback - without feedback
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Ansteuerung
2/3 point
Drehmoment
5 Nm
Elektrischer anschluss
1m Cable
Fur klappengrosse
approx. 1 m²
Laufzeit motor
20s/90°
Schutzart
IP54
Spannungsversorgung
230V AC
Temperatur
? 8…15 mm, ? 8…20 mm
