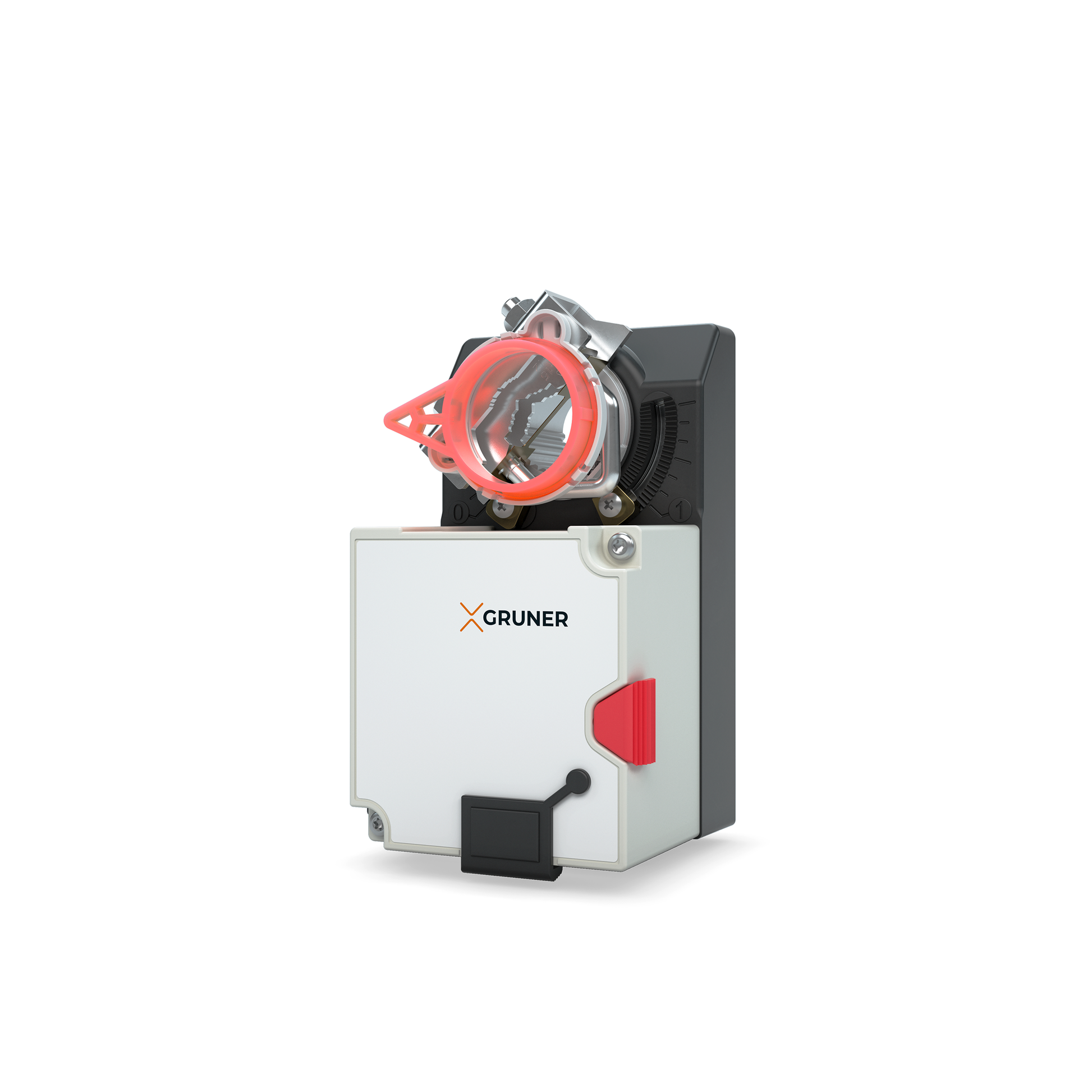

227CZ-024-10-S1/RE20
Rotary actuator without spring return
24 VAC/DC, modulating (0)2…10 V
Torque 10 Nm
Running time 150 s/90°
Connection with 1m cable
Feedback signal: (0)2…10 V/ 1x auxiliary switch
Shaft coupling: O 8-20 mm, square 8-15 mm
Mounting with Z-flange + screws
Spring running time - without spring return
Position switch contact - 1x switch
Feedback - (0)2…10 V
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Ansteuerung
(0)2…10 V
Drehmoment
10 Nm
Elektrischer anschluss
1m cable
Fur klappengrosse
approx. 2m²
Laufzeit motor
150s/90°
Schutzart
IP54
Spannungsversorgung
24V AC/DC
Wellenmitnahme
? 8–15 mm, ? 8–20 mm
