227CZ-024-05-S1/RE20

227CZ-024-05-S1/RE20

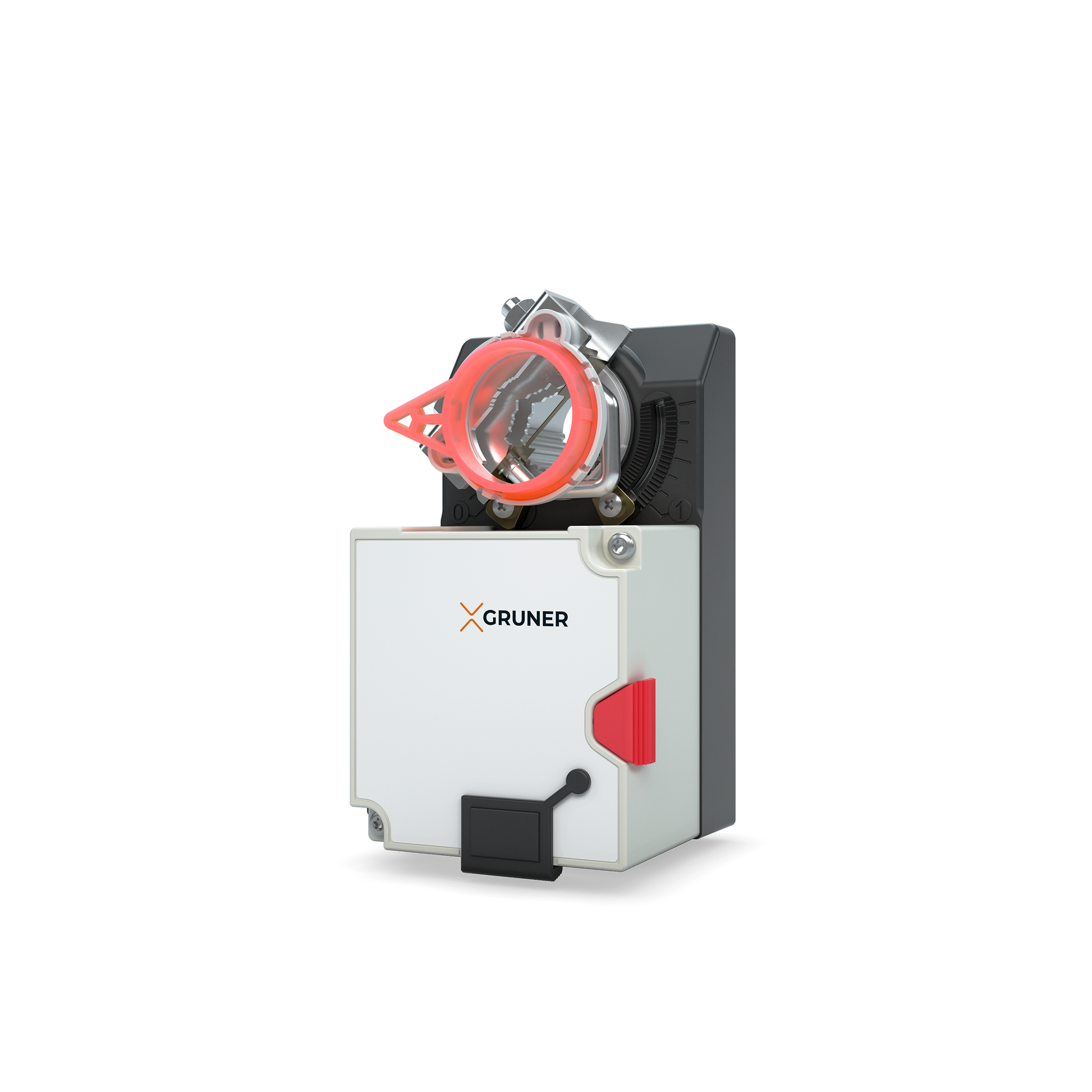

Rotary actuator without spring return
24 VAC/DC, continuous (0)2…10 V
Torque 5 Nm
Running time 100 s/90°
Connection with 1m cable
Feedback signal: (0)2…10 V/ 1x auxiliary switch
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with Z-flange + screws

Spring running time - without spring return
Position changeover contact - 1x switch
Feedback - (0)2…10 V
