227C-230-10

227C-230-10

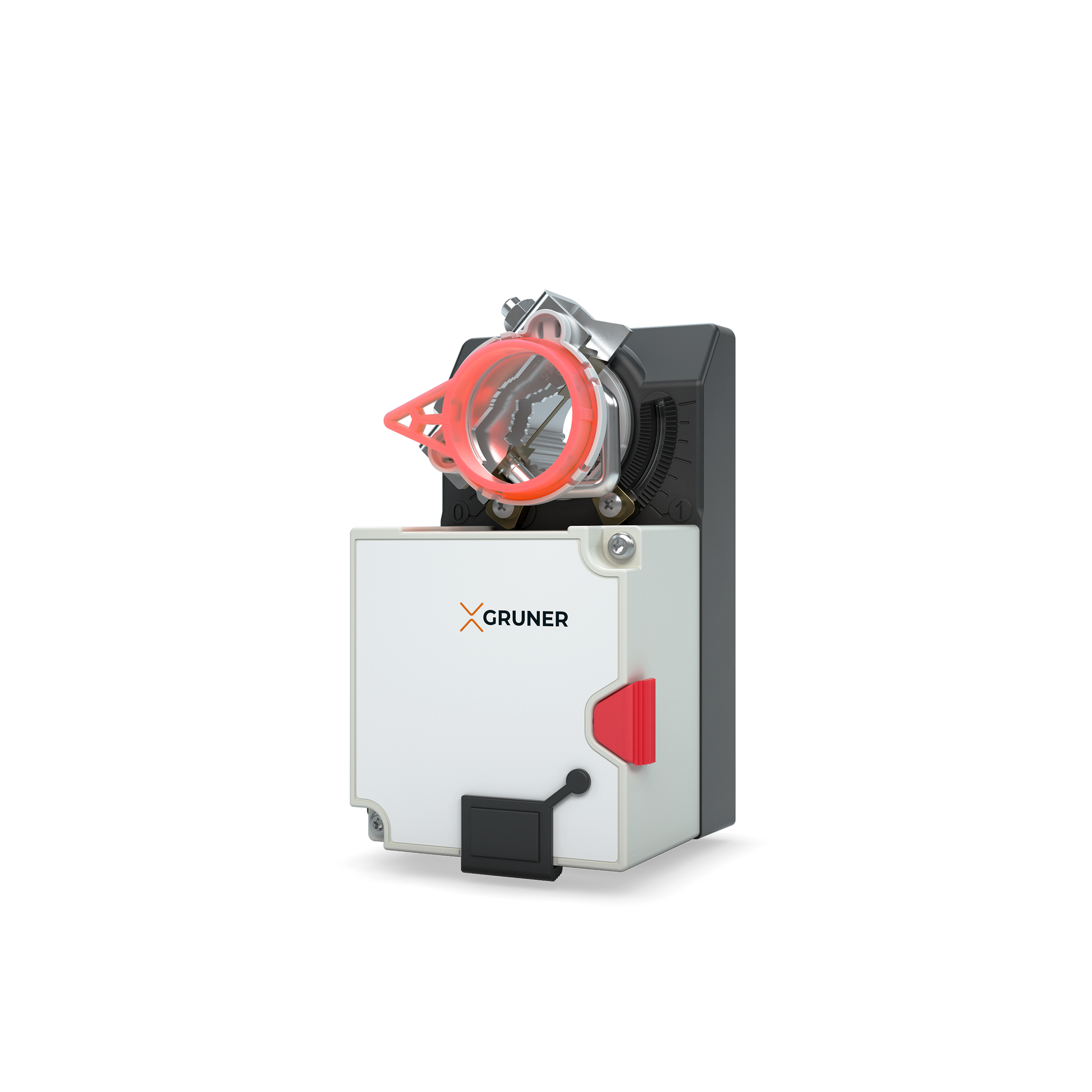

Rotary actuator without spring return
120...230 VAC/DC, continuous (0)2...10 V
Torque 10 Nm
Running time 150 s/90°
Connection with 1m cable
Feedback signal: (0)2...10 V
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with mounting rail + screws

Spring running time - without spring return
Position changeover contact - without switch
Feedback - (0)2...10 V
Direction of rotation - selectable by switch
Manual operation - Push button
