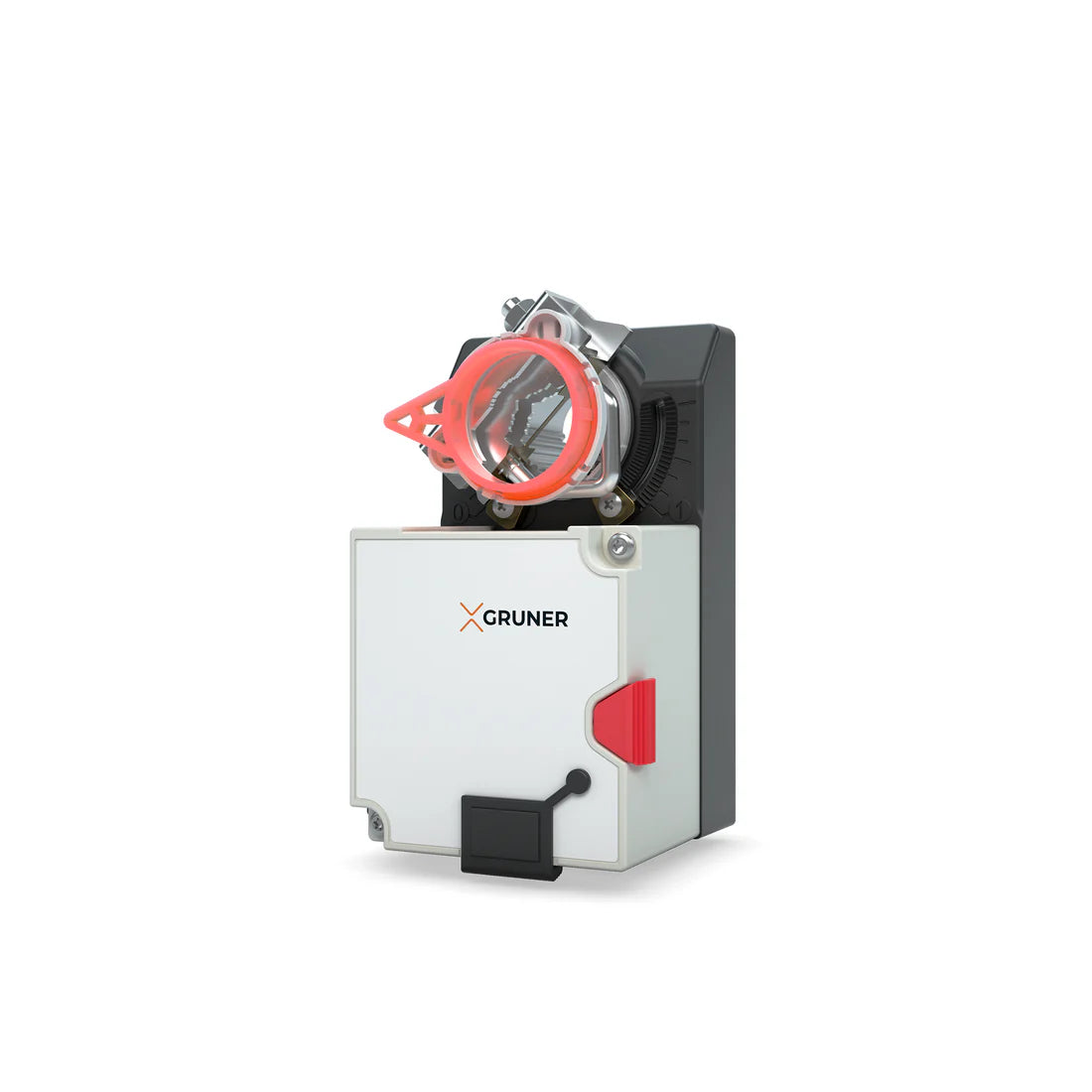

227C-024-05

227C-024-10
Rotary actuator without spring return
24 VAC/DC, continuous (0)2…10 V
Torque 10 Nm
Running time 150 s/90°
Connection with 1m cable
Feedback signal: (0)2…10 V
Shaft coupling: O 8-20 mm, square 8-15 mm
Mounting with mounting bracket + screws

227C-024-10-S1
Rotary actuator without spring return
24 VAC/DC, continuous (0)2…10 V
Torque 10 Nm
Running time 150 s/90°
Connection with 1m cable
Feedback signal: (0)2…10 V/ 1x auxiliary switch
Shaft coupling: O 8-20 mm, square 8-15 mm
Mounting with mounting bracket + screws

Spring running time - without spring return
Position switch contact - 1x switch, without switch
Feedback - (0)2…10 V
Rotation direction - selectable by switch
Manual override - Push button
