227-024-10-S1/yEx

227-024-10-S1/yEx

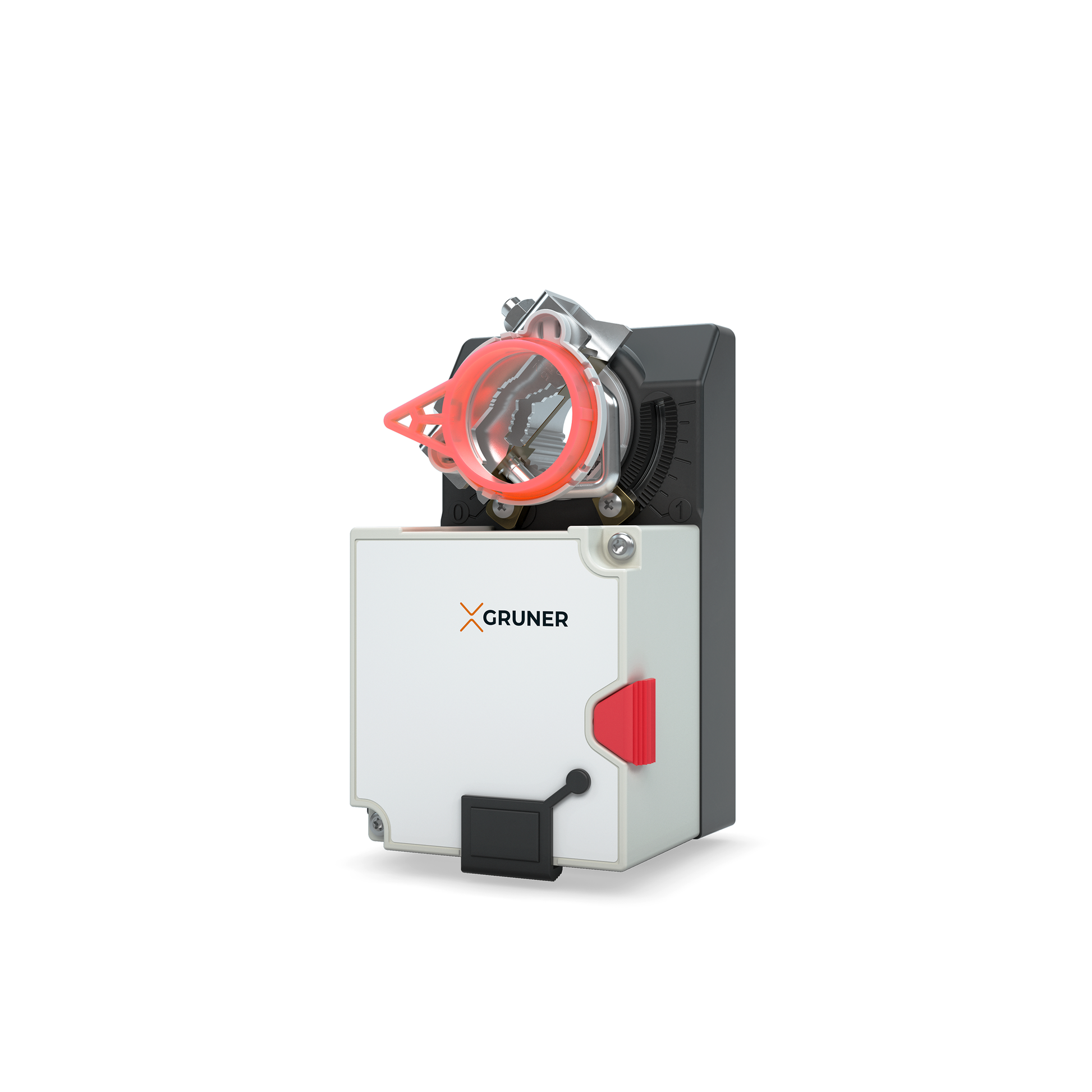

Rotary actuator without spring return
24 VAC/DC, 2/3 point
Torque 10 Nm
Running time 150 s/90°
Connection with 1m cable
Feedback signal: auxiliary switch
Shaft coupling: square 8, 10, 12 mm
Mounting with Z-flange + screws
