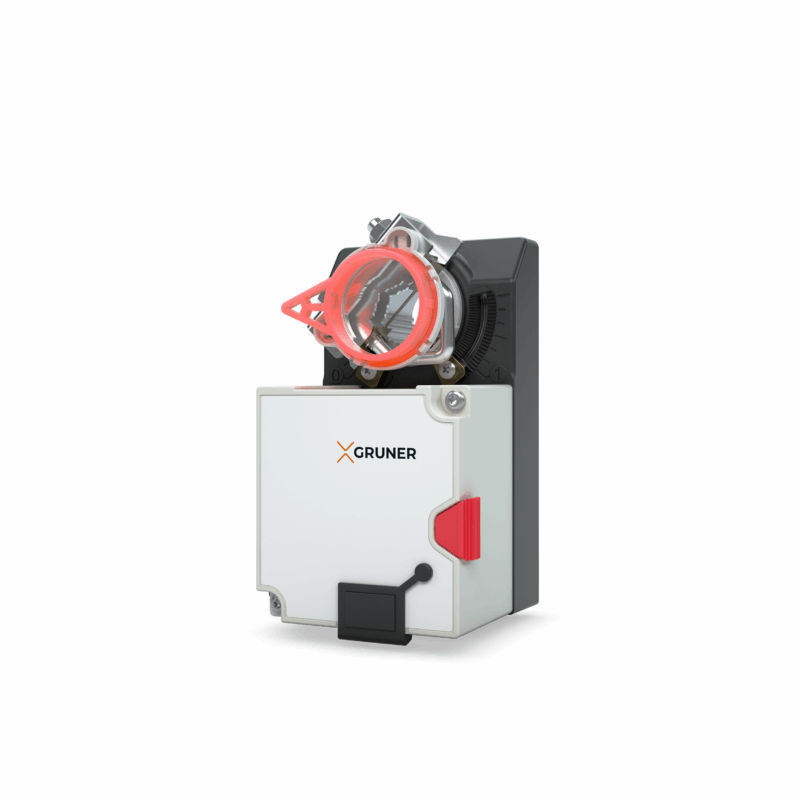

227-024-10-S1
Rotary actuator without spring return
24 VAC/DC, 2/3 point
Torque 10 Nm
Runtime 150 s/90°
Connection with 1m cable
Feedback signal: –
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with mounting bracket + screws
Position switch contact - 1x switch, no switch
Spring return runtime - without spring return
Position switch contact - 1x switch, no switch
Feedback - no feedback, potentiometer
Direction of rotation - selectable by switch
Manual operation - push button
Datenblatt
Datenblatt
Zusätzliche Informationen
Zusätzliche Informationen
Ansteuerung
2/3 point
Drehmoment
10 Nm
Elektrischer anschluss
1m cable
Fur klappengrosse
approx. 2m²
Laufzeit motor
150s/90°
Schutzart
IP54
Spannungsversorgung
24V AC/DC
Wellenmitnahme
? 8…15 mm, ? 8…20 mm
