227-024-05

227-024-05

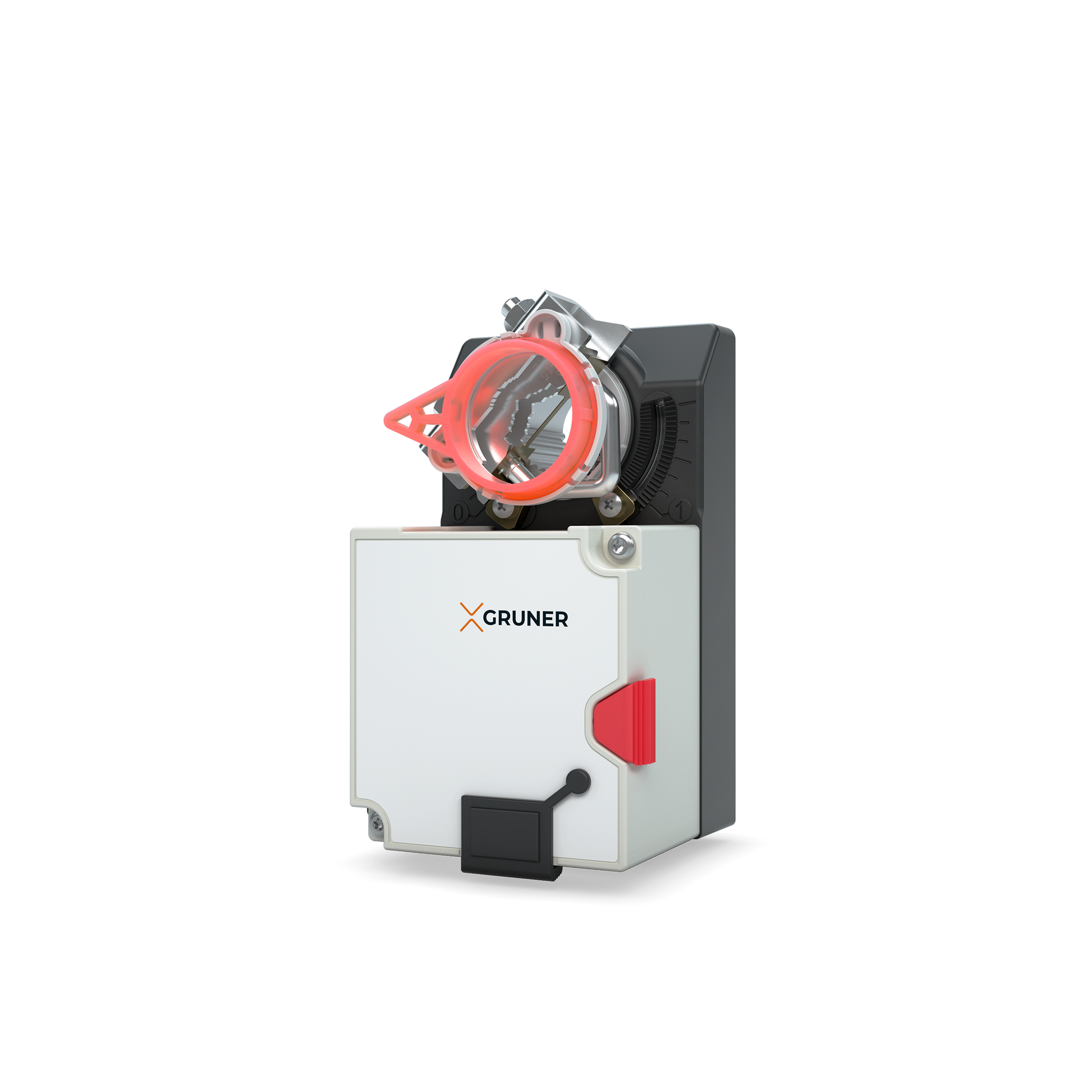

Rotary actuator without spring return
24 VAC/DC, 2/3 point
Torque 5 Nm
Running time 100 s/90°
Connection with 1m cable
Feedback signal: –
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with mounting bracket + screws

227-024-05-P5
Rotary actuator without spring return
24 VAC/DC, 2/3 point
Torque 5 Nm
Running time 100 s/90°
Connection with 1m cable
Feedback signal: –
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with mounting bracket + screws

227-024-05-S1
Rotary actuator without spring return
24 VAC/DC, 2/3 point
Torque 5 Nm
Running time 100 s/90°
Connection with 1m cable
Feedback signal: auxiliary switch
Shaft coupling: Ø 8-20 mm, square 8-15 mm
Mounting with mounting bracket + screws

Running time spring - without spring return
Position switch contact - 1x switch, without switch
Feedback - without feedback, potentiometer
Direction of rotation - selectable via switch
Manual operation - push button
