225CS-024T-05-S2

225CS-024T-05-S2

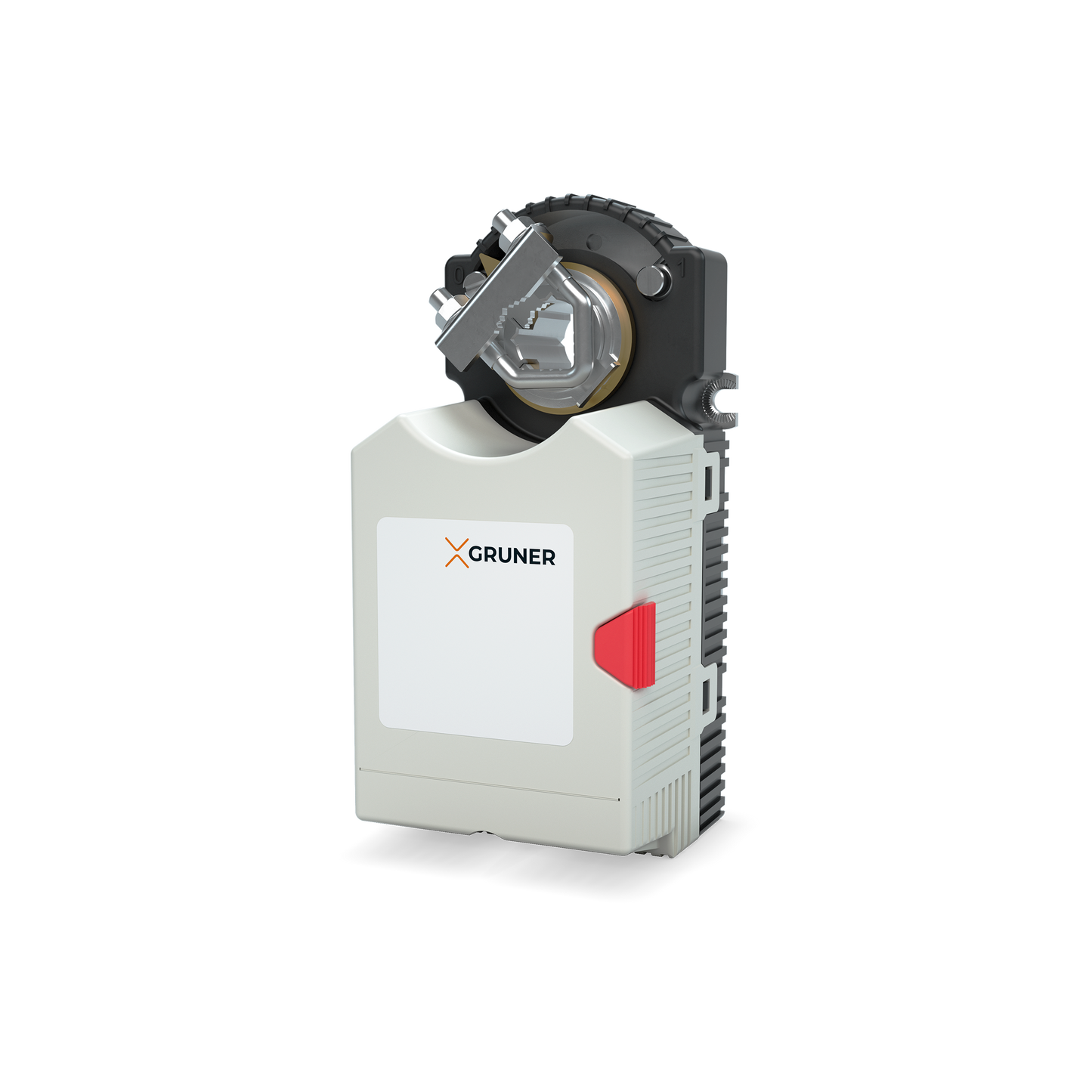

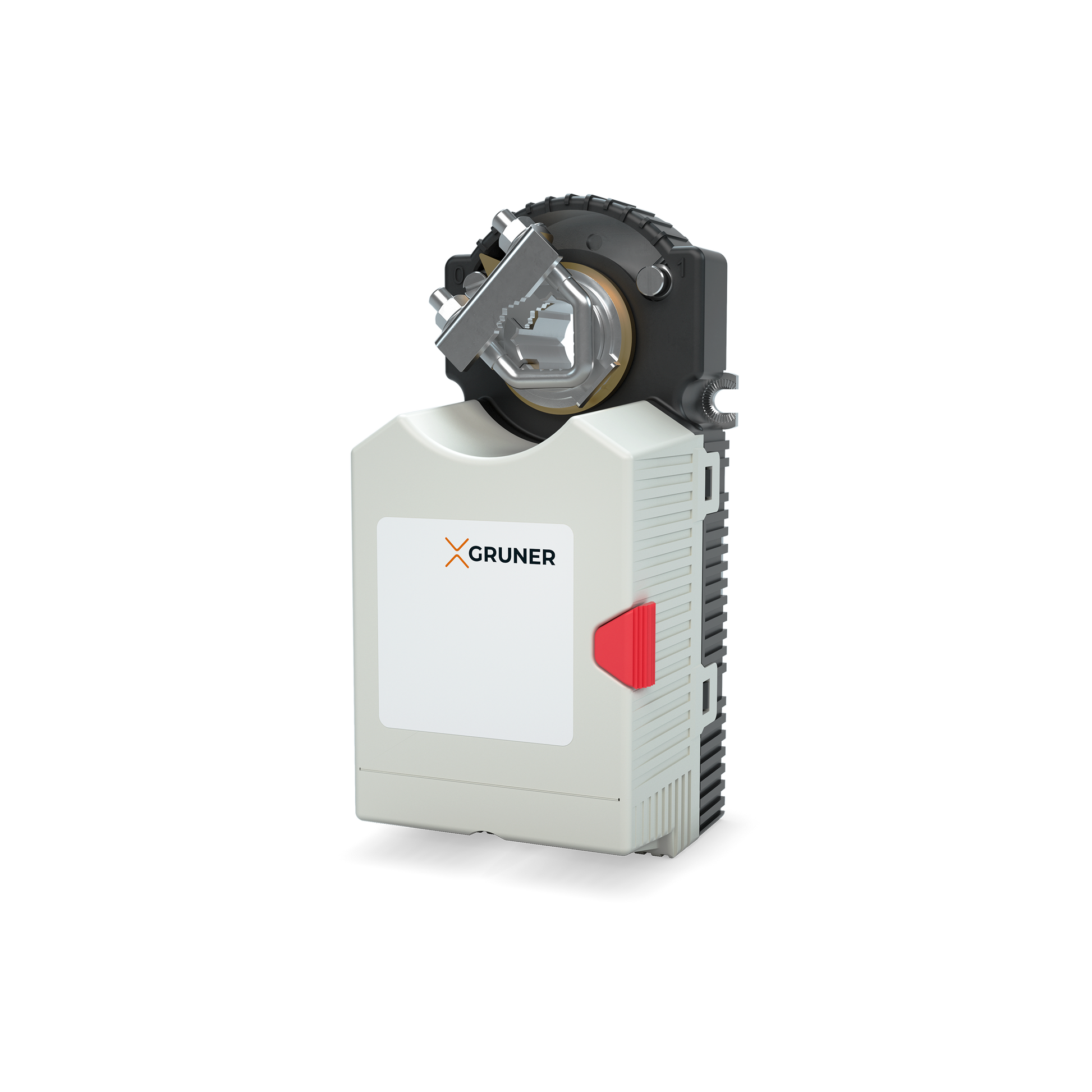

Rotary actuator without spring return
24 VAC/DC, continuous (0)2…10 V
Torque 5 Nm
Running time 20…35 s/90° (BDC motor!)
Connection with screw terminals
Feedback signal: (0)2…10 V, 2x auxiliary switches
Shaft coupling: Ø 8-16 mm, square 8-12 mm
Mounting with mounting rail + screws
