225-230T-05-S2

225-230T-05-S2

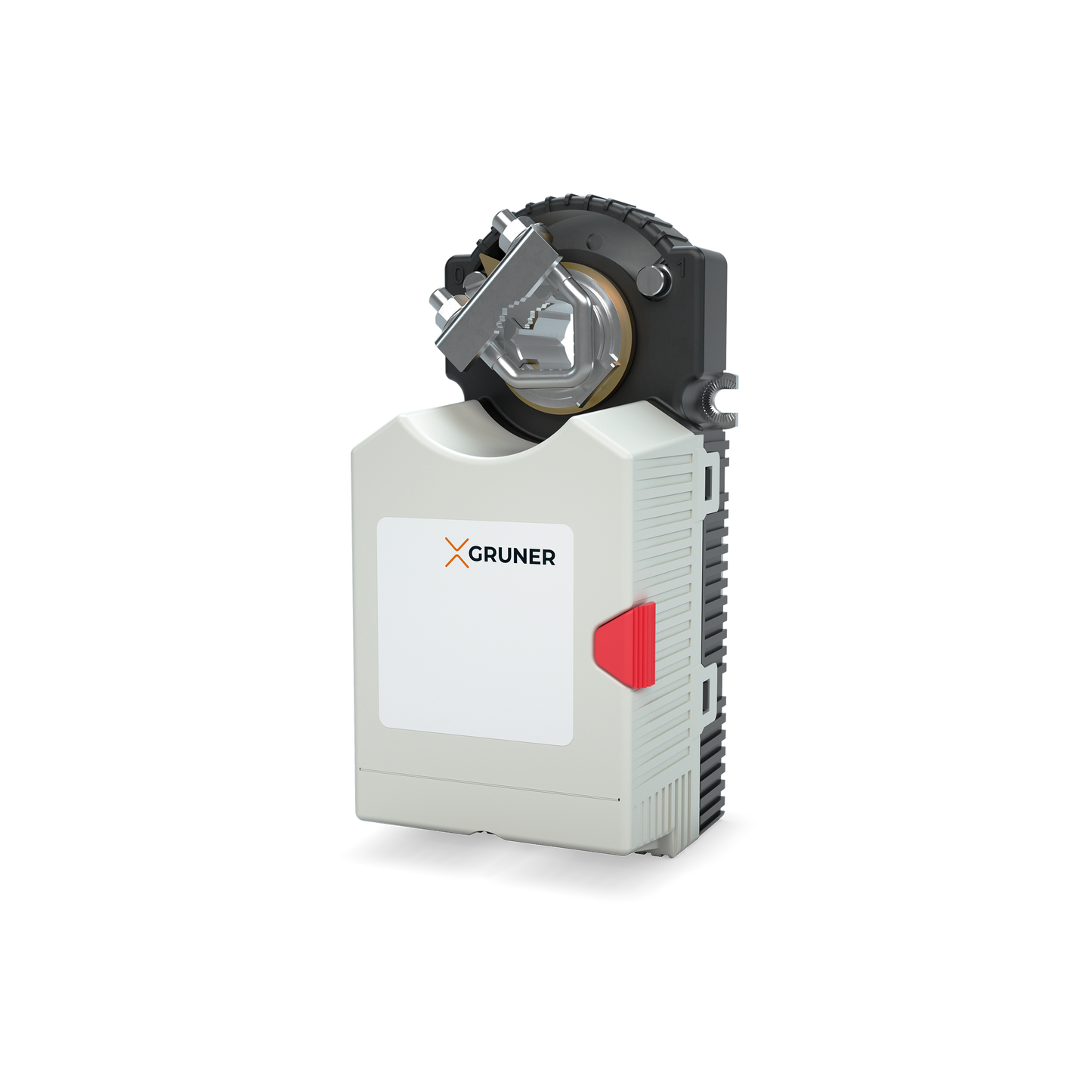

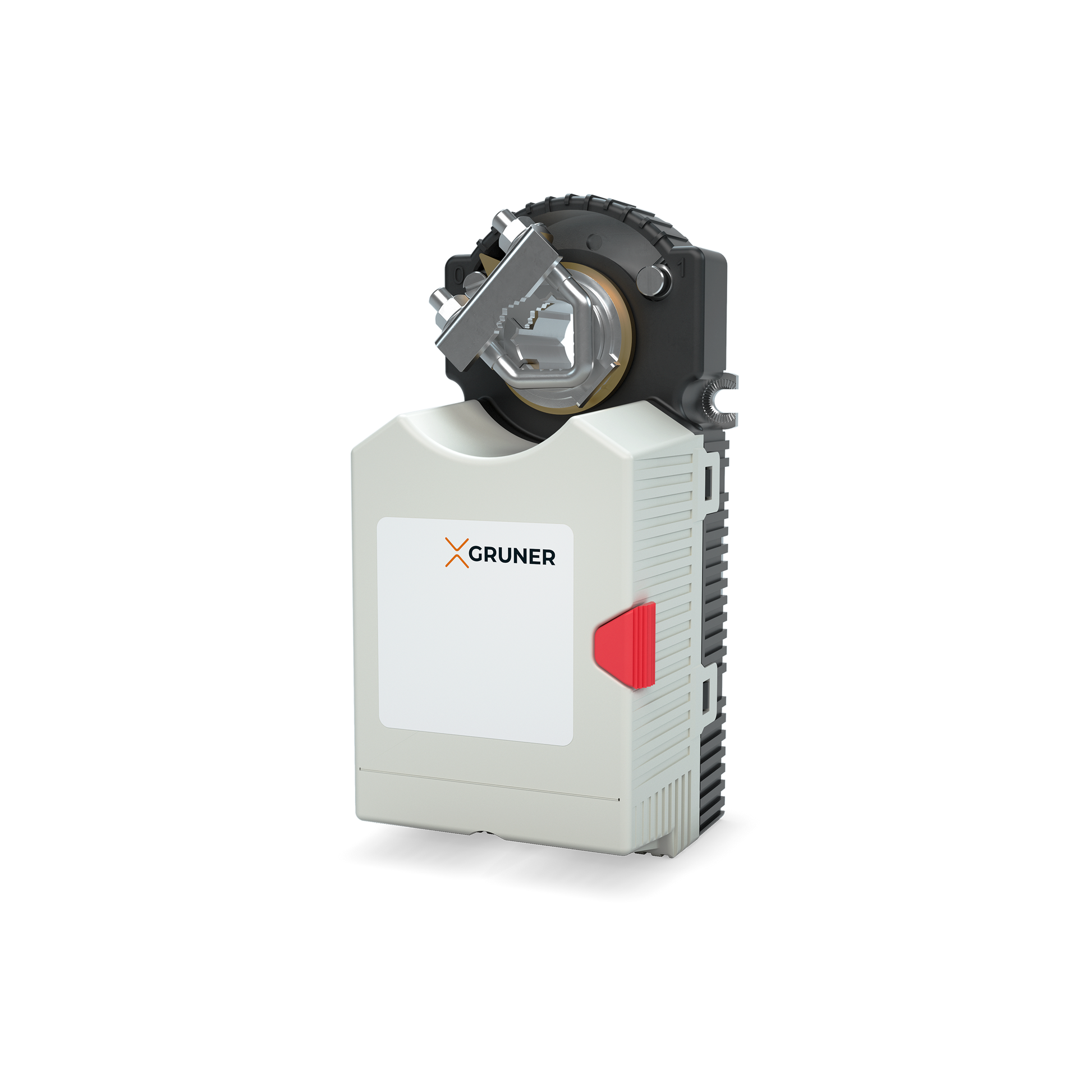

Rotary actuator without spring return
120...230 VAC/DC, 2/3 point
Torque 5 Nm
Running time 60...120 s/90° (BDC motor!)
Connection with screw terminals
Feedback signal: 2x auxiliary switches
Shaft coupling: Ø 8-16 mm, square 8-12 mm
Mounting with mounting rail + screws
