225-230T-05-P5

225-230T-05-P5

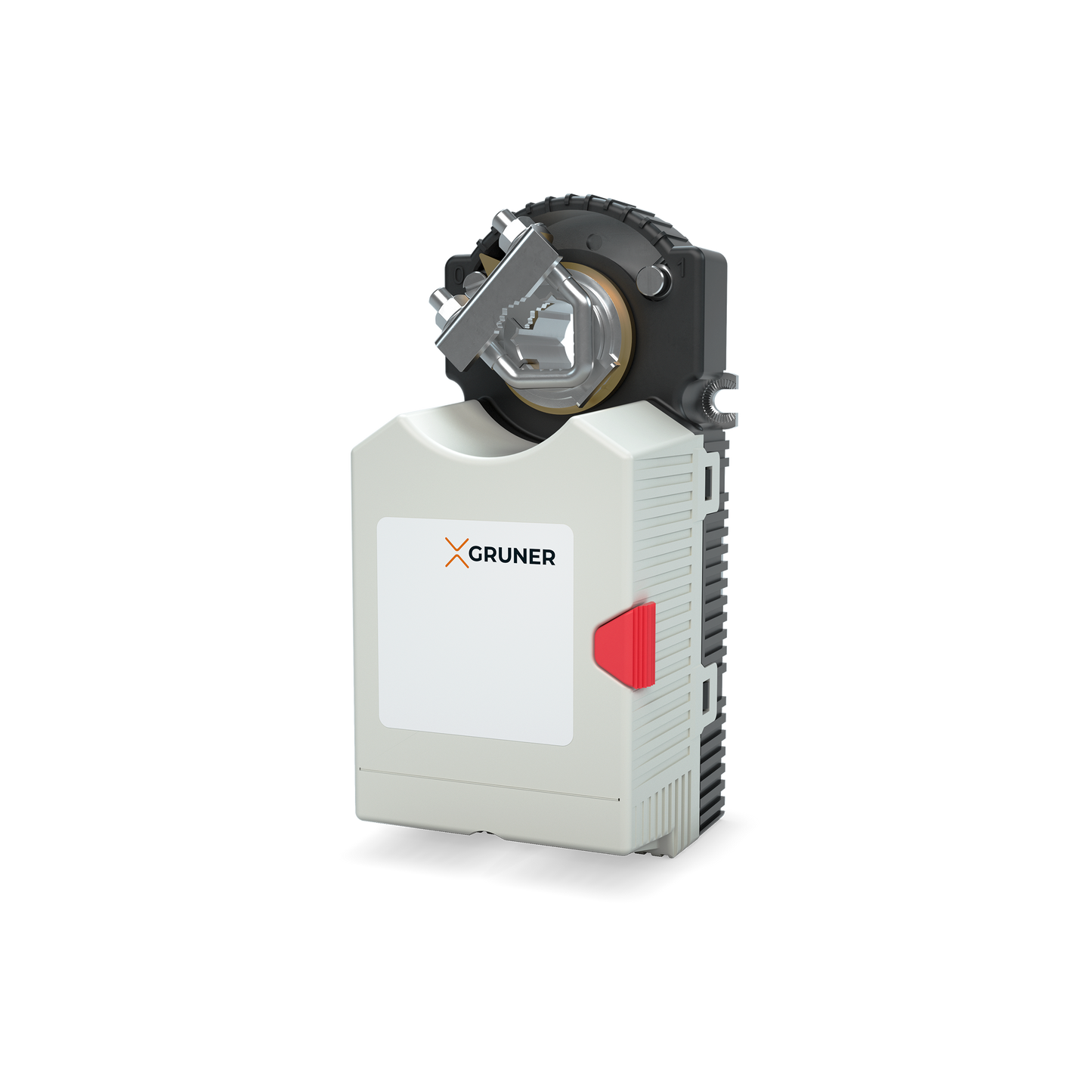

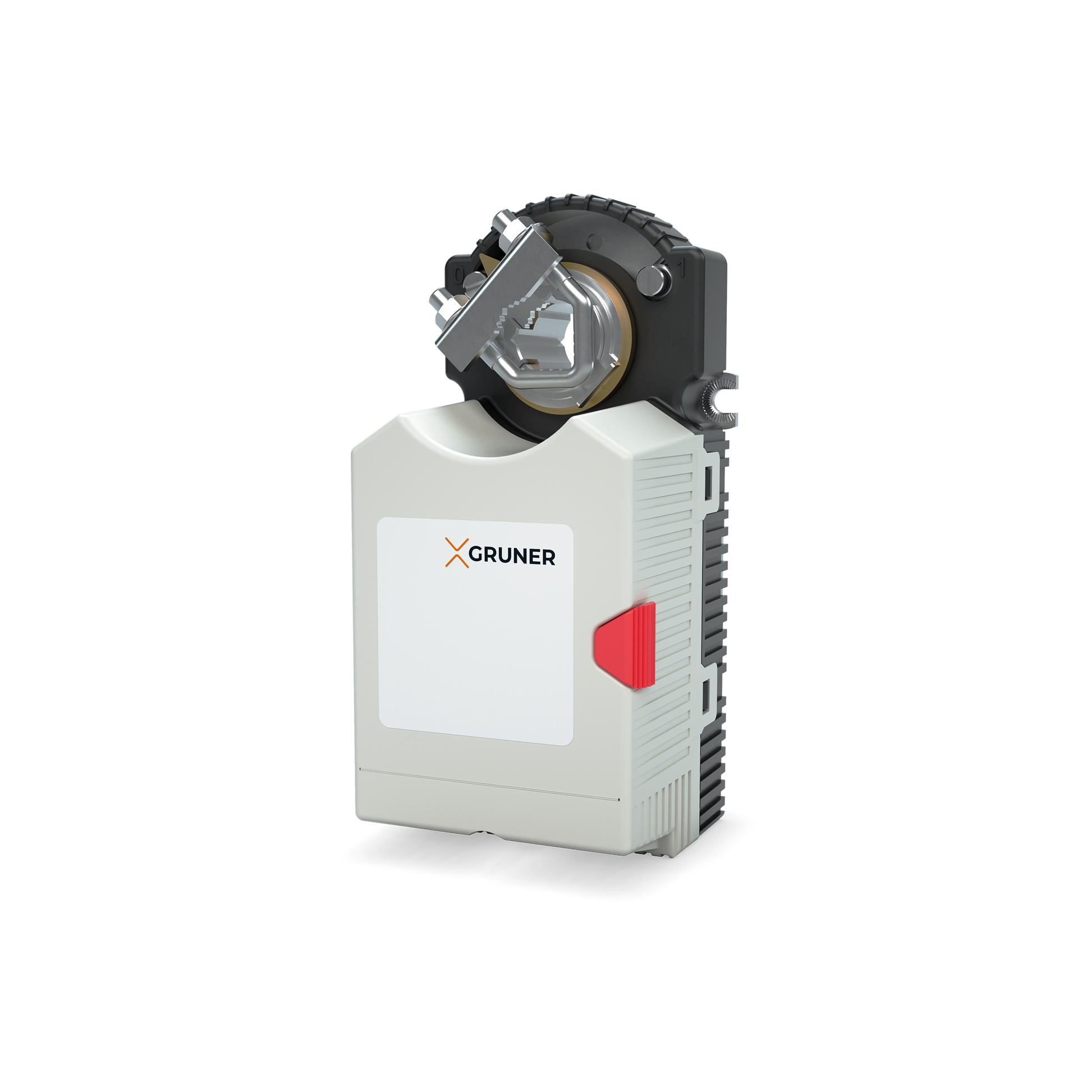

Rotary actuator without spring return
120...230 VAC/DC, 2/3 point
Torque 5 Nm
Running time 60...120 s/90° (BDC Motor!)
Connection with screw terminals
Feedback signal: Potentiometer
Shaft coupling: O 8-16 mm, square 8-12 mm
Mounting with mounting bracket + screws
